RRP $733.60
$550.50
SAVE $183.10 (25%)
Not Available In Store

Calculate Shipping

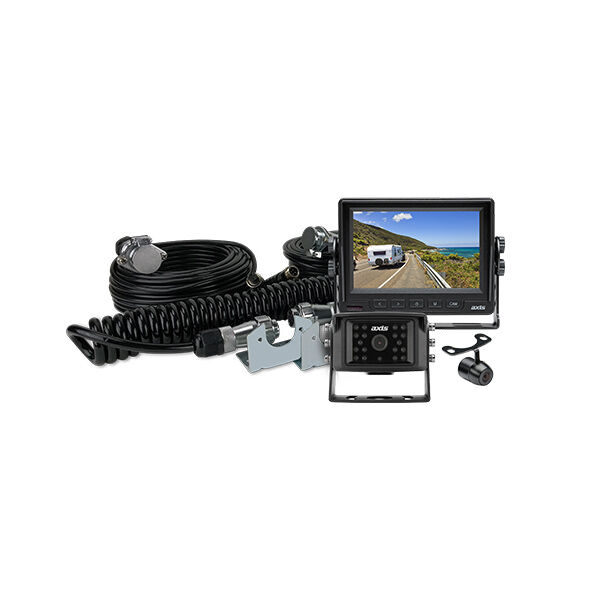

The JS5001CK is a heavy duty rearview caravan camera kit. This no-fuss system provides everything needed to quickly connect a reliable caravan/trailer camera and monitor system. You can focus on the journey ahead with peace of mind while having a clear view of your surroundings when reversing.
Specifications:
1) JS5001 MONITOR:
TFT Panel: New Grade A LCD LED Backlight
LCD Size: 125mm (5-Inch) Diagonal
Display Format: 16:9
Resolution: 800 x 480
Brightness: < 450 CD/M2
Viewing Angles: 90 Deg. Left/Right/Up/Down
Video System: Auto PAL/NTSC Select
Video Connections: 2 x 4-Pin (Female)
Reverse Trigger: Input Assignable
Camera View: Input Override in Reverse Mode
Monitor View: Normal/Mirror Image Select
Guidelines: Selectable
Audio: On Board Speaker
Main Menu: Brightness/Contrast/Colour/Volume/Reset/Slideshow/Language/Reverse Priority and Delay
Casing Material: 100 degC Heat/Flame Proof (UL94V-0) ABS
Power Input: 10-32V DC (Negative Ground)
Dimensions: 136W x 102H x 25D mm (excluding brackets)
2) C20 CAMERA:
Imaging Device: 1/4” Full Colour CMOS
Imaging Sensor: PC7070
Effective Pixels: 704 x 576
Lens: Full Glass
Viewing Angle: 170 degree (Diagonal), 110 degree (Horizontal)
Video Format: PAL/NTSC (Selectable)
Parking Guidelines: Yes (Selectable), Type (Adjustable), Height and Width (Adjustable)
One Button Control: Image Orientation Select (Mirror/Normal), Video Mode Select (PAL/NTSC), Guideline Type Adjust, Guideline Height Adjust, Guideline Width Adjust
Image Orientation: Mirror, Normal, Upside-Down Mirror, Upside-Down Normal (Selectable)
Minimum Illumination: 0.3 Lux
Water/Dust Protection: IP67
Power Input: 12/24V DC
Mounting: Number Plate or In-Bumper
Connection: RCA
Dimensions: 16.5mm x 23mm (D)
Included: Dual Mounting Heads (Butterfly and Bumper Fit), Installation Hardware, Metal Hole Saw for Bumper Fit Installation, 6m Camera to Monitor Lead (RCA Male) with Power Wire for Reverse Triggering, RCA(F) to 4-Pin(M) Adaptor
3) CC10 HEAVY DUTY CAMERA:
Image Device: 1/3” Nextchip NVH 2040 HIgh-Band CCD
Image Sensor: SONY ICX639XK
Diagonal Viewing Angle: 130 degree
Horizontal Viewing Angle: 90 degree
Signal System: PAL
Effective Pixels: 752H x 582V
Sync System: Internal
Resolution: 600 TV Lines
Lens: 4 x Full Glass
Orientation: Mirror
Night Vision: Yes, 18 LED
Illumination: 0.1 Lux with IR on
Ingress Protection: IP67
Integrated Microphone: Yes
Operating Temp: -20 to 70 degC
Power Consumption: 90-300mA
Dimensions: 77W x 52H x 69D mm (Excluding Bracket) – Connection: Terminated 4 Pin Male
Power Supply: 8-50V DC
4) TQC100 – TRAILER QUICK CONNECT
Curly Cable Length: 0.5m (Original State) 4.0m (Elongated)
Mounting Plate: 5-Pin (Male) Metal Plug with Weather Cover
Brackets: 2 x Metal Plug Mounting Brackets
Cable (Monitor Side): 10m Terminated to 4-Pin (Male) (To plug into Monitor)
Cable (Camera Side): 15m Terminated to 4-Pin (Female) (To plug into Camera)
INCLUDED:
1 (JS055) 5” (125mm) Compact Colour Monitor (dash or console mount)
2 (C20) Miniature Camera (for rear of your car, 4WD or truck)
3 (CC10 Series 2) Infrared Camera (for mounting on caravan or trailer)
4 Quick Connect Cable Kit (to link vehicle and caravan)
Installation Manual
Optional: Glass Mount Bracket (BKT101)
.a

(JS5001CK)

SKU JS5001CK
Barcode # 9321886013511
Brand Axis
Shipping Weight 3.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.250m
