RRP $651.92
$444.73
SAVE $207.19 (32%)
Not Available In Store

Calculate Shipping

APPLICATION:

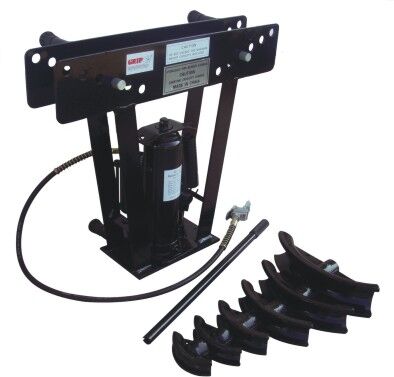

Shop air / hydraulic pipe bender with a rugged high-grade steel frame for bending or forming steel pipe or tubing easily. Minimum wall thickness of 3mm is required otherwise kinking can occur. NOT suitable for automotive exhaust style tubing. Can be used vertically or horizontally. Unit and formers supplied in separate packaging.
FEATURES:
High grade steel frame, painted enamel finish for corrosion resistance
6 position adjustable top roller guides
Heavy duty dual return springs for easy returns and resets
6 extra deep formers included, individually size stamped (metric and imperial)
Shop air over hydraulic ram for ergonomic 1-man operation
SPECIFICATIONS:
Former sizes (packaged separately): 1/2” (13mm), 3/4” (19mm),1” (25mm), 11/4” (32mm), 11/2” (40mm), 2” (50mm)
Packaged Dimensions (formers) (L x W x H):350 x 300 x 120mm
Weight (net)(formers): 12kg
Ram Capacity: 12,000 KG
Working air pressure: 80 – 120 PSI
Maximum Tubing Diameter: 2” (50mm)
Packaged Dimensions (unit) (L x W x H): 650 x 550 x 220mm
Weight (net)(unit): 35kg

(81110)

SKU 81110
Barcode # 9.33532E+12
Brand Grip
Shipping Weight 35.0000kg
Shipping Width 0.550m
Shipping Height 0.250m
Shipping Length 0.650m
