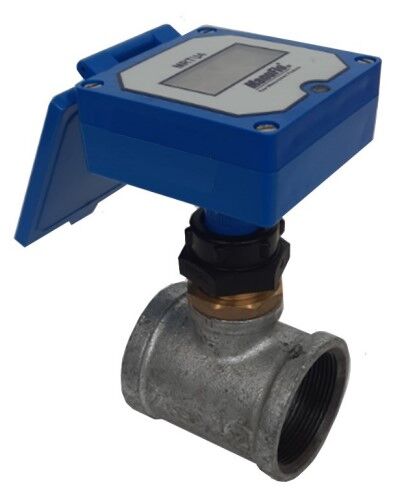

MRTU6 LCD Dual Resettable Counter and Rate Flowmeter

FEATURES:
6 digit LCD resettable or non-reset totalizer (12mm high), and 5 digit flowrate
Total in LITRES or optional KiloLitres
Flowrate in LPM or optional LPS
Easy reset of total via flip top lid.
± 2.5 percent accuracy, at 0.7 - 8.0 m/s flow velocity
Repeatability: ± 1.0 percent
Internal 3.6 v Lithium Battery (8+ year life).
Max. Process Temperature 80 degC
Max. Ambient Temperature 55 degC
Max. Operating Pressure: PVC Tee’ options rated to 1100 kPa
All Metal Tee options are rated 1600 kPa
With simple installation pipe fittings/adapters.
For pipe sizes from 20 to 100 mm (short stem version) or 110 to 500mm (long stem version)
Optional pulse output, via M12 IP67 plugset
Robust ASA-UV IP65 Display housing
Dual Hinged robust lid protects LCD from sunlight.
Slip insertion sensor design with locking cap allows simple removal from pipeline if cleaning rotor.
Easier Access for re-calibration and user friendly smart 1 point
re-calibration function –self calculation for a new K- factor.
Optional External re-calibrate via Portable Device with RFID and EWM calibration software.
Dual display: Rate + Reset Total 6-digit LCD (12mm high) counts in LITRES or KILOLITRES.
Pulse Output is Live even when lid is closed or optionally Pulse Output is Disabled when lid is closed (code -PNL)
Option for continuous Live LCD (code -NS) FREIGHT- $45.00
