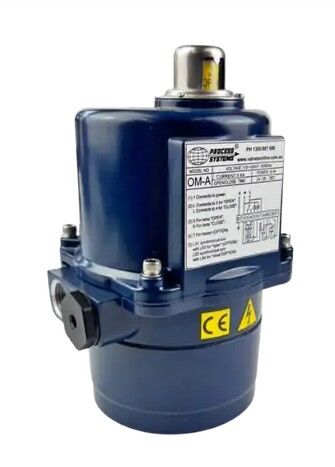

0M-A Electric Actuator 50Nm 24v AC/DC - 0M-A-58LS

The 0M series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a powder coated die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). Cable connection is made through 2 of M20x1.5 cable entries. All models have visual indicator, extra limit switches and a manual override. Duty cycle is dependant on ambient temperature, voltage and actuator model, and relates to the 135°C thermal motor protection.
