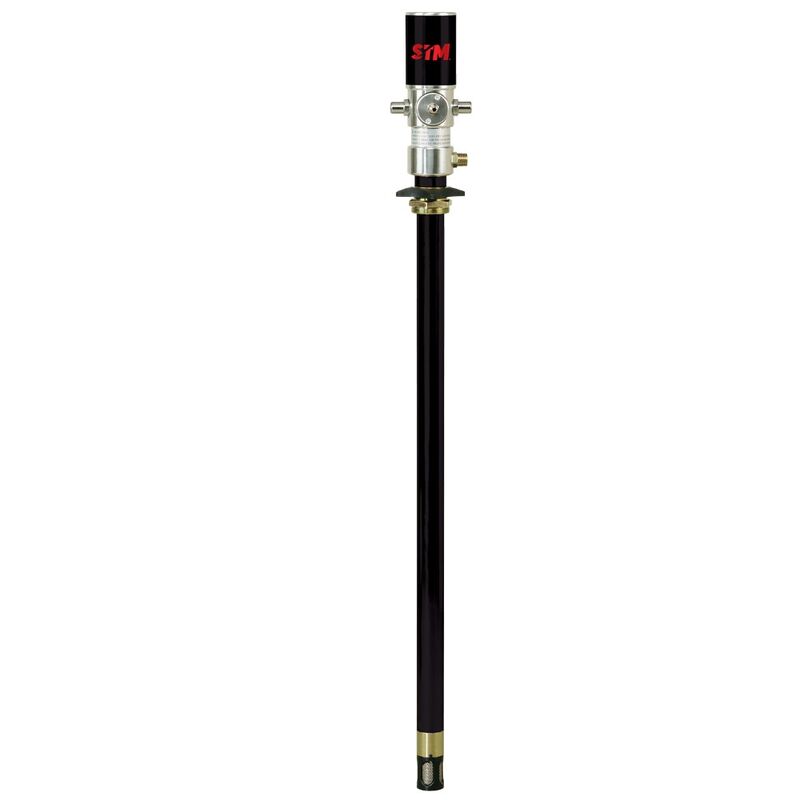

1:1 Air Operated Oil Pump Only

Suitable for oil bars, 205 litre drums and bulk tanks
Air operated for integration into transfer system
Smart design with fewer parts for less pump wear offering long life
Differential air motor ensures smooth pumping
Typical fluids handled include motor oil, synthetic oil, hydraulic oil, gear oil, and automatic transmission fluid
Suitable for oil up to 120 SAE
Supplied with adjustable 2" bung adapter
Not suitable for pumping distances of more than 6 metres when reasonable volume is required
Also available: 1:1 ratio air operated pump (long series) that dispenses at 32 l/m (DITI 1701006)
DRUM APPLICATION: 205 LITRE
PRESSURE RATIO: 1:1
WORKING PRESSURE: 20 - 115PSI
AIR CONSUMPTION: at115PSI 3.6 CFM
MAX FREE FLOW RATE: 18 LPMSUCTION TUBE DIAMETER / THREAD: 42MM
SUCTION TUBE LENGTH: 950MM
AIR INLET CONNECTION: 1/4" BSP FEMALE
OIL OUTLET CONNECTION: 1/2" BSP MALE
