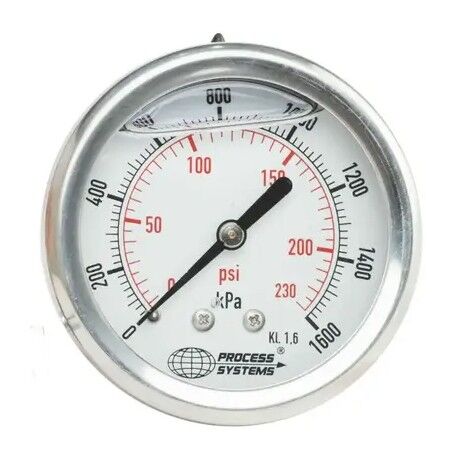

100mm SS liquid filled 3/8" BSPT back entry 0-1600 kpa - 100mm 316 Stainless Steel Case, SS internals and entry. Liquid Filled.Crimped - GAU100RS-1600
SKU:GAU100RS-1600
RRP $292.60
$199.59
SAVE $93.01 (32%)
Not Available In Store
Calculate Shipping
GAU100RS-1600: 0 to 1600 kpa (0 to 230 PSI)
Size: 100mm (4")Accuracy: +/- 1.0%
Range: Depends upon model
Work Pressure: 3/4 of full scale
Fluctuating pressure: 2/3 of full scale
Short Time Pressure: Full Scale
Operating Temperature: -10°C to 60°C
Media: Compatible gases and liquids
Housing: 316 Stainless Steel Case with Bayonnet Bezel
Window: Polycarbonate
Liquid Filled: Glycerine
Bourdon Tube: 316 Stainless Steel
Movement: 316 Stainless Steel
Connection: 316 Stainless Steel
Thread: 3/8" BSPT
Scale: Dual Scale Kpa/Psi
Size: 100mm (4")Accuracy: +/- 1.0%
Range: Depends upon model
Work Pressure: 3/4 of full scale
Fluctuating pressure: 2/3 of full scale
Short Time Pressure: Full Scale
Operating Temperature: -10°C to 60°C
Media: Compatible gases and liquids
Housing: 316 Stainless Steel Case with Bayonnet Bezel
Window: Polycarbonate
Liquid Filled: Glycerine
Bourdon Tube: 316 Stainless Steel
Movement: 316 Stainless Steel
Connection: 316 Stainless Steel
Thread: 3/8" BSPT
Scale: Dual Scale Kpa/Psi
(GAU100RS-1600)
| SKU | GAU100RS-1600 |
| Barcode # | 9310755067236 |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.120m |
