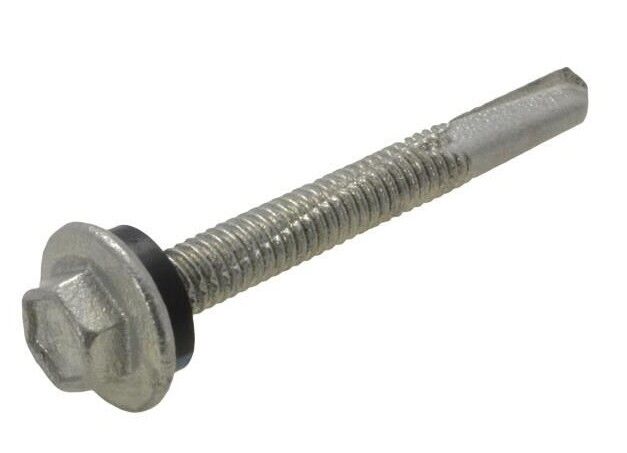

12g-24 x 32mm Full Thread NEO Hex Flange (5/16") Series 500 Fine Metal Self Drilling Screw Galvanised - 08122432500C4N

System of Measurement: Screw Gauge
Product: Series 500 Self Drilling Metal Screw
Head Type: Hex Flange Head
Size: 12g (5.50mm)
Thread Pitch: 24 TPI
Thread: Fine
Thread Direction: Right Hand
Corrosion Protection Level: Excellent
Internal or External: External
Class Grade:Class 4 / B8® Cat 5
Material: Hardened Steel
Finish: Galvanised
NEO Sealing Washer: Yes
Product Diameter (d): 5.30 - 5.40mm
Head Diameter (a): 14.10 - 14.40mm
Screw Length (l):Length measurement is from under head to end of drill point
Head Height (h): 5.85mm
Drill Point Length (p): 17.00mm
Min to Max Steel Thickness: 3.00 - 12.00mm
Drive Size (as): 5/16"
Screw Point: Drill Point
Drive Type: Hex
Single Shear (kN): 8.9
Axial Tensile (kN): 16.0
Torsional (Nm): 13.3
Standard Made To: AS3566
Brand: Hobson Engineering
