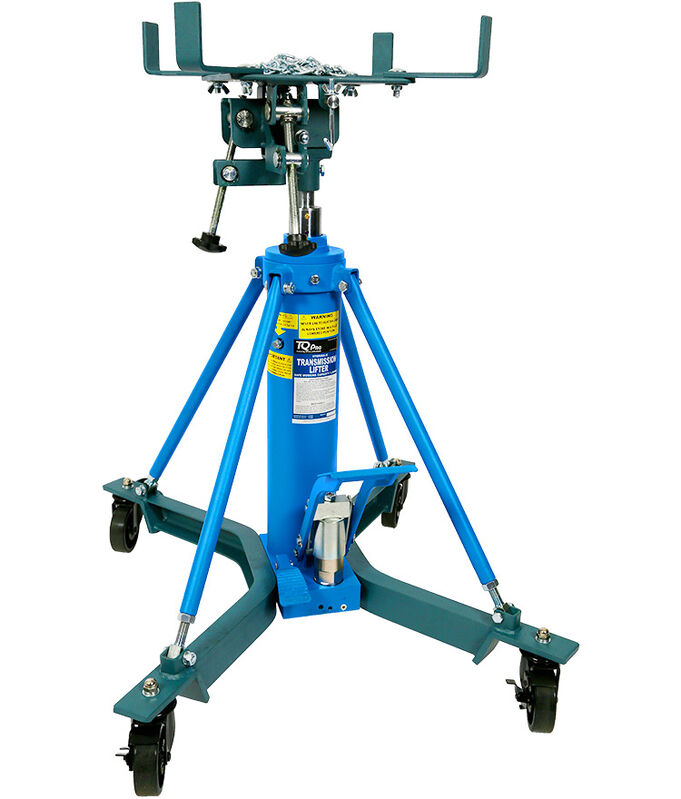

2-Stage 1,000kg Hydraulic Telescopic Transmission Lifter

This TQ Pro "Latest Applied Technologies" 2-Stage 1,000kg Hydraulic Telescopic Transmission Lifter offers a wide range of versatility designed to help increase workshop productivity. Designed for use with passenger, SUV, 4x4 and Light Commercial with GVM of less than 3,500kg. This Transmission Lifter features a universal "oversized" lifting platform that provides a wide 4 way tilt range. The telescopic 2-stage design is ideal for reduced clearance lifts and the high speed foot pedal operation keeps hands free during lowering. The manually operated hydraulic system includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design features four premium quality 'braked' nylon swivel castors for easy maneuverability around the workshop.
Features:
Using CNC technology, the chassis and frame is constructed of superior-grade steel and built to premium standards for professional quality and durability
High quality large diameter hydraulic steel cylinder with precision tolerances and in-ram bleeding and lubricating mechanism
Piston-ram is precision machined, treated and polished to minimise wear and extend service life
Globally sourced premium (twin) O rings with anti-dust ring, reduce wear and substantially increase durability
Concealed double staged pump core
Rapid lift without load
Slow descent with load
Overload safety valve
Aviation grade hydraulic fluid
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting and durable finish
Paint is oil, grease and dirt-resistant for easy cleanup
Oversize mounting cradle provides a broad 4 way adjustment / tilt range
Premium quality lockable nylon swivel castors
Specifications:
Safe Working Capacity: RWD/FWD/AWD/4X4 GVM <3,500kg
Rated Capacity: 1,000kg
Maximum Height: 1940 mm
Minimum Height: 940mm
2 Stage Lift Ram travel: 1st=490mm 2nd=510mm
Lifting Platform Size: 280x280mm (480x480mm Max.)
Forward Tilt: 9 degree
Rearward Tilt: 28 degree
Left Tilt: 9 degree
Right Tilt: 28 degree
Base Dimensions: 610 x 740mm
Nett Weight: 76.5kg
Carton: 850 x 550 x 350mm
Gross Weight: 88kg
