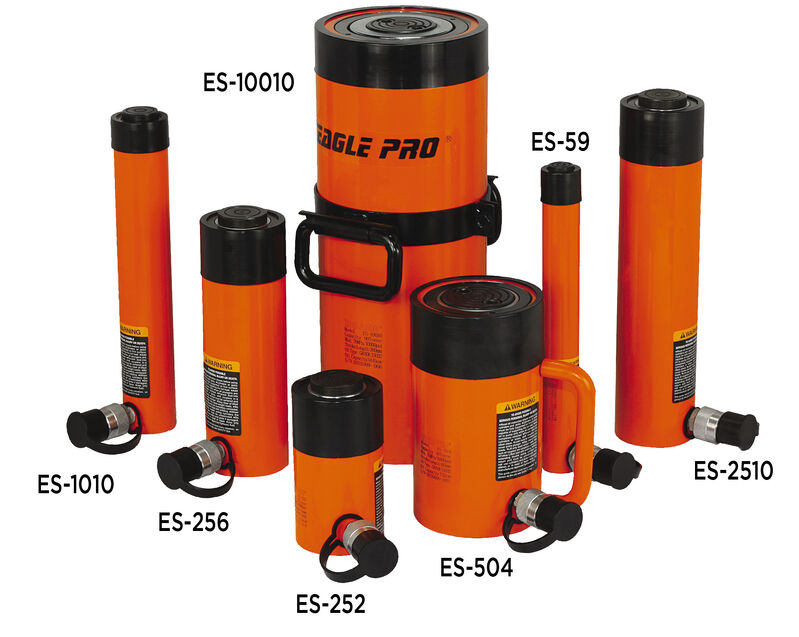

25T Single Acting Ram-158mm Stroke- Eagle Pro - ES-256

Features:
Spring loaded ram return system, allowing controlled retraction of the ram.
High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
Pumps have an automatic overload system to help prevent damage to cylinders, pumps and accessories.
Easily adapts to hoses, rams, pumps, spreaders, and other accessories using Eagle Pro 3/8" NPT and 1/4" NPT fittings.
Industrial strengthened seals prevent costly leaks.
Hardened alloy steel guide ring eliminates over travel and provides support for off-centre loads without damaging the cylinder walls.
Eagle Pro ram couplers fitted with dust covers minimising fluid contamination.
Specifications:
Cylinder Capacity @ 10,000psi (700 BAR): 25,000kg
Stroke: 158mm
Effective Cylinder Area: 33.2cm2
Oil Capacity: 524.56cm3
Collapsed Height: 273mm
Extended Height: 431mm
