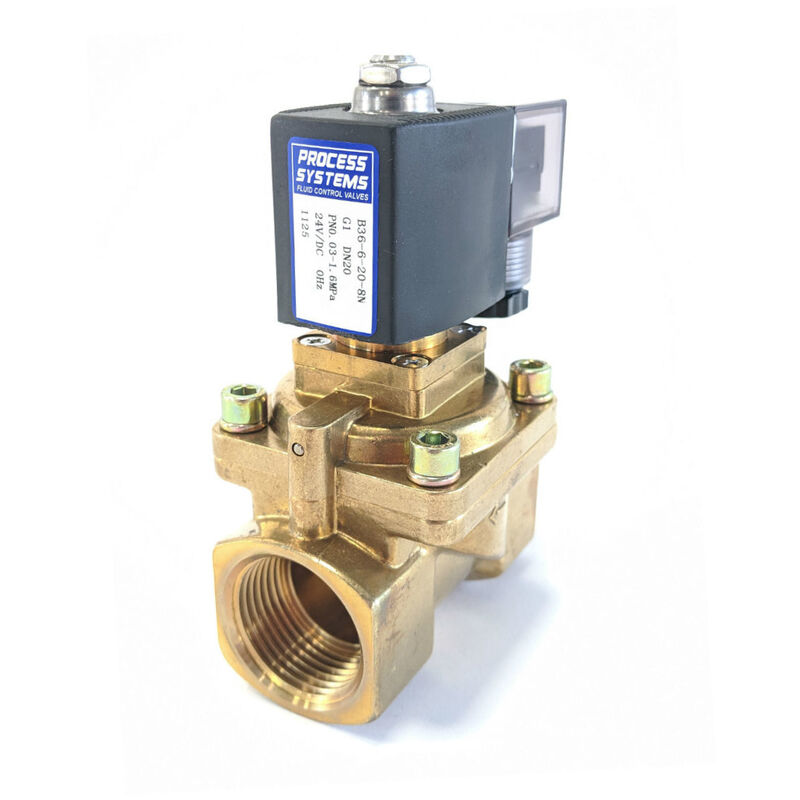

3/4" BSP Brass Normally Open Solenoid Valve 0.3-16 Bar 24v DC NBR

General purpose differential solenoid valve for air, water and non aggressive media up to 40CST viscosity. Normally open (energise to close) and available in all voltages. Comes with coil (class H insulation) and DIN plug (IP65 protection). The coil is 100% ED rated for continual operation and the valve has a life expectancy of hundreds of thousands of cycles. Installation can be in any orientation however upright is always preferable if possible. Threads conform to ISO7.1 sealing threads.
Port size (BSP): 3/4
Orifice (mm): 20
CV: 10
Media Pressure: 0.3 to 16 BAR
Media Temp: -10 deC to 80 degC
Repair Kit: RK-B36-6-N
Coil specifications:
SC-N14
27 Volt Amps
16 Watts
Class H Insulation
100 percent ED
