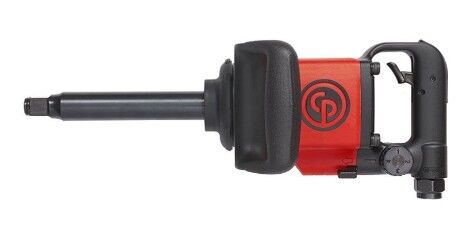

3/4"Pneumatic Impact Wrench Cp7763D-6

RRP $3,248.85

$2,067.45

SAVE $1,181.40 (36%)

Not Available In Store

Calculate Shipping

Torque
Max working torque fwd: 1450 Nm
Max torque reverse: 1760 Nm
Min working torque fwd: 340 Nm
Torque limited: No
Air information
Air inlet thread size (in): 1/2
Max dynamic air working pressure: 6.3 bar
Min hose diam (16 ft hose length): 0.38 in
Min hose diam (5 m hose length): 13 mm
Speed
Free Speed: 6600 rpm
Air consumption at free speed: 26 l/s
Size & Weight
Length (L): 445 mm
Side to Center: 45 mm
Weight: 7.3 kg
Design & Functions
Body: Composite
Clutch housing: Aluminum
Clutch lubrication type: Grease
Handle type: D-handle
Impact mecanism: Twin hammer
Output drive size (in): 3/4
Output drive type: Sq
Output retainer type: Friction ring
Side handle: Yes
Starting system: Trigger

(CP7763D-6)
