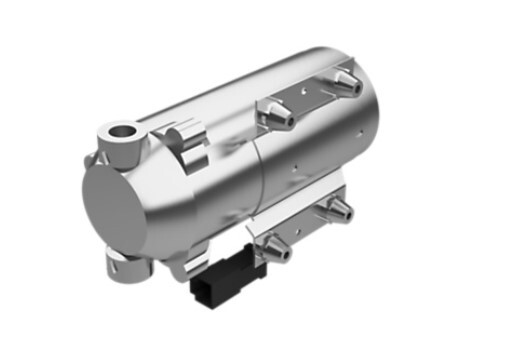

309-9501: Pump Group-Diaphragm

Cat Diaphragm Pump Group
Description:
The pump supplies water from the tank to water spray nozzles.
Attributes:
With 3-chamber diaphragm pump
Voltage: 12V
With pigtail connector
Application:
See owner's manual or contact your local Cat Dealer for more information.
Specs:
Total height (in): 3.94
Total Length (in): 7.48
Total Width (in): 4.13
COMPATIBLE MODELS FOR PART NUMBER 309-9501
PAVING COMPACTOR
C32 C4.4 CB-14 CB-22 CB-22B CB-24 CB-24B CB-32 CB-32B CB-334E CB-334E XW CB-335E CB-34 CB-34 XW CB-34B CB-34B XW CB -36B CB-44B CB-54B CB-64B CB-66B CB-68B CB1.7 CB1.8 CB10 CB13 CB15 CB16 CB2.5 CB2.7 CB2.9 CB22B CB46B CB7 CB8 CC-24 CC-24B CC-34 CC -34B CC2.6 CC2.7 CCS7 CD-44B CD-54B CD10 CD8 CW-14 CW-16 CW12
