5:1 OILMASTER With Metered Oil Gun

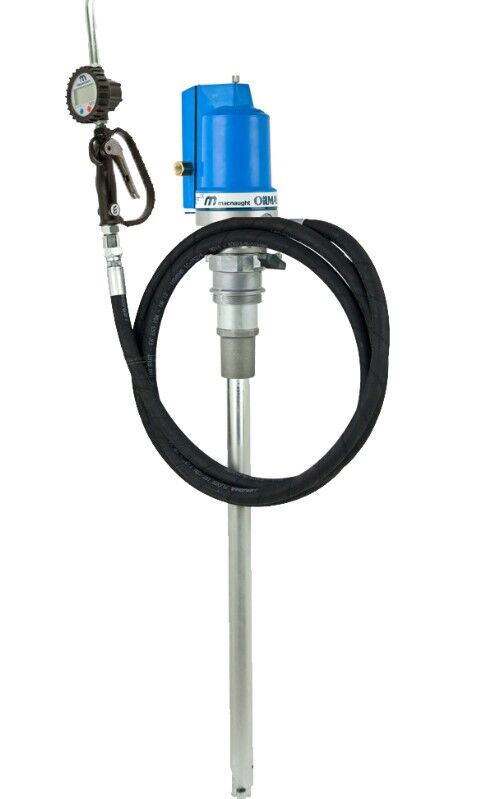

The T512THGE-01 pump kit includes a premium quality T512T-01 (5:1) ratio air-operated oil drum pump c/w 3m (10ft) x 1/2" (12.5mm) oil hose, HG20R-012E-01 electronic metered oil control gun with rigid extension and non-drip nozzle. The kit has an approximate flow rate 8L/min (2.1 US gal/min) with SAE10 oil and is suitable for oils up to SAE 140, pre-mix coolants.
Technical Specifications:
T512T-01 – 5:1 ratio oil pump (air operated) – using SAE10 oil
HG20R-012E-01 oil control gun with rigid extension and non-drip nozzle – accurate, reliable oil delivery with no leak
1/2” x 3M long oil hose with fittings to connect the pump to gun
Max air pressure – 120psi (827 kPa)
Min air pressure – 60psi (400 kPa)
Typical air consumption – 5 cfm
Air inlet – 1/4” NPT (F) swivel type
Oil outlet –1/2" BSP (F)
Oil inlet – 1” BSP (F)
Max static head – 10m
Fluid types – Mineral based oils (engine oil, gear oil, hydraulic oil, transmission fluid up to SAE140)
Wetted materials – Zinc, Hard Chrome, Plated steel, Aluminium, Brass, Nitrile rubber, Polyurethane rubber
Features & Benefits:
T512T (5:1) ratio drum pump – proven reliability and peace of mind
HG20R-012E-01 oil control gun with rigid extension and non-drip nozzle – accurate, reliable oil delivery with no leak
Suitable for oils to SAE140, coolants
3m x 1/2" I/D. oil delivery hose including fittings
