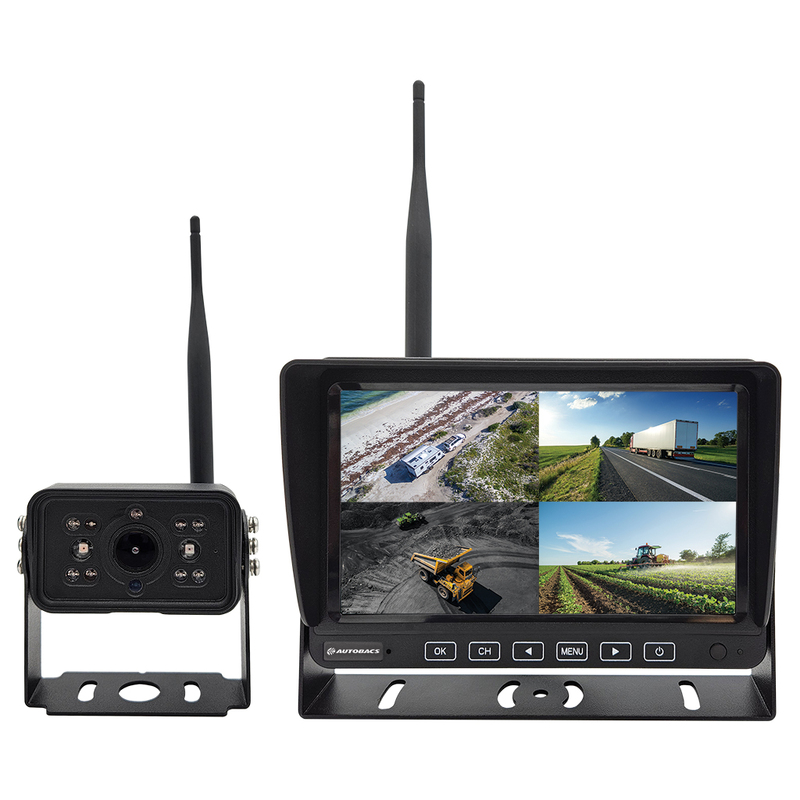

7 Inch High Res Wireless System

The HD74WK 7 inch high resolution wireless reversing system enhances driving safety. This system features a top-of-the-line camera with audio capabilities, capable of providing crystal-clear visuals even in low light conditions. With its quad view functionality, you can easily pair up to 4 cameras and monitor multiple angles, ensuring complete visibility of your vehicle’s surroundings.
Specs:
MONITOR
Video decoding: NTSC and PAL
Cameras Supported: Up to 4 cameras
Resolution: 1024 x 600
Contrast: 800
Brightness: 500cd/m2
Viewing Angle 85 degree (Left/Right/Up/Down)
Viewing options: Single/Split Screen/Quad
Reversing guidelines: Selectable On/Off
Operating frequency: 2.412-2.4835 GHz
Time delay: 180ms max
Operating Voltage: 10-32V DC
Current consumption: <400mA at 12V
Operating temperature: -20 degC-+70 degC
Storage temperature: -30 degC-+80 degC
Dimensions:
Excluding Mount & Sunvisor: 179mm x122mm x 28mm
Including Mount & Sunvisor: 197mm x137mm x 63mm
CAMERA
Image Sensor: 1/2.9 inch Starlight HD
Active pixel array: 1920 x 1080
Viewing Angle: 120 degree Diagonal, 103 degree Horizontal
Resolution: 1000 TV lines
IP Rating: IP69K
Minimum Illumination: 0.1 lux
Operating Frequency: 2.412-2.4835GHz
Transmitter power: 20dbm
Operating voltage: 10-32V DC
Current Consumption: <300mA at 12V
Operating Temperature: -20 degC-+70 degC
Storage Temperature: -30 degC-+80 degC
Dimensions:
Excluding Mount: 79mm x 49mm x 54mm
INCLUDED
Monitor
Camera
Sunshade
U-Bracket
Wiring Harness
Camera DC Power Cable
Antennas
