Specifications:

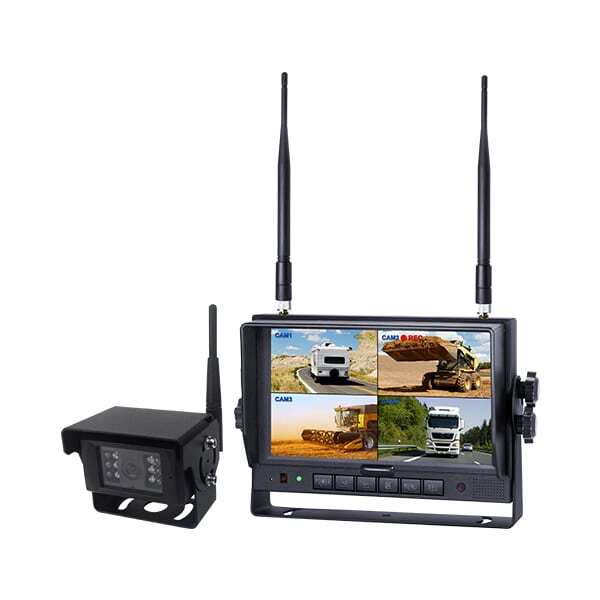

MONITOR:
LCD Size: 178mm (7”)
Resolution: 800 x 3 (RGB) x 480
Contrast: 500:1
Brightness: 400 cd/m2
Viewing Angle: U: 50 / D: 70, R/L: 70
Dot Pitch: 0.0642(W) x 0.1790(H)
Aspect Ratio: 16:9
Image Orientation: Normal / Mirror / Flip / Mirror Flip
Inputs: 4 Channels
Operating Frequency: 2.4 to around 2.4835 GHz
Receiving Sensitivity: -89 dBm
Pairing to Camera/s: Auto when camera activated
Compression Format: MPEG4
Transmit Output Power: 17 dBm
Modulation: 2.4G FSK/GFSK
Time Delay: 120ms
Transmitting Range: 120 Metres (approx)
Recording Media: Micro-SD / TF Card (not supplied)
Max SD Card Capacity: 128GB
Cycled Recording: 1 to around 4 channels
Signal System: PAL / NTSC
Power Supply: DC 10-32V
Power Consumption: 6W Max
On-board Loudspeaker: 1.5W
Operating Temperature: -20 -+70 degC
CAMERA:
Image Device: 1/3” CCD PC1089 Sensor
Viewing Angle: 120deg
Signal System: PAL
Effective Pixels: 728 x 488
Sensing Area: 4.6228mm x 3.6112mm
Scanning System: 2:1 Interlace
Sync System: Internal
Horizontal Sync Frequency: 15.625 KHz
Vertical Sync Frequency: 50 Hz
S/N Radio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50 (PAL) to around 1/100,000 seconds
Operating Frequency: 2.4 to around 2.4835 GHz
Receiving Sensitivity: -89 dBm
Line of Sight Range: 120 metres
Compression Format: MPEG4
Frame Rate: 25f/s
Transmit Output Power: 17 dBm
RF Bit Rate: 4Mbps
Minimum Illumination: 0 Lux (12 IR LEDs)
Night Vision Distance: 10m
Audio: Yes
Ingress Protection: IP69
Power Supply: DC 8-36V
INCLUDED:
Mounting Brackets:
Dash Mount
U-Shape Mount
Accessories:
Sunshade
Remote Control
3dB Patch Antenna for Enhanced Range
.a

(JS007WQK)

SKU JS007WQK
Barcode # 9321886012125
Brand Axis
Shipping Weight 2.5000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.250m
