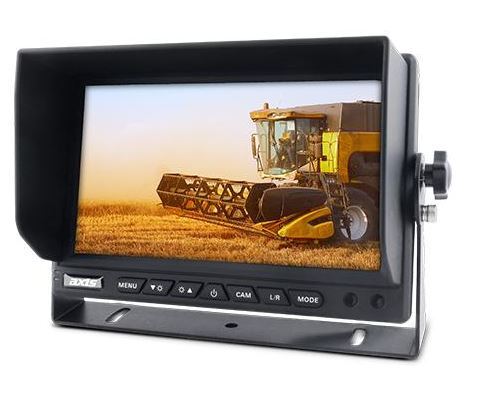

7" Wireless Camera Kit Rearview

A High Resolution 12/24V monitor kit that offers a clear image and enhanced view when reversing. Its Heavy Duty construction makes it suitable for trucks, machinery and vehicles. The HD7030K also has the added flexibility of using up to 3 cameras. (1 camera included)
MONITOR:
TFT Panel: New Grade A LCD
LCD Size: 178mm (7-Inch) Diagonal
Display Format: 16:9
Resolution: 1024 x 600
Brightness: < 500 CD/M2
Viewing Angles: 70 degree Left/Right/Up/Down
Video System: Auto PAL/NTSC Select
Video Connect: 3 x 4-Pin (Male)
Compatability: Works with all AXIS FHD HD Cameras
Camera Triggers: 3
Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
Buttons: Illuminated
Guidelines: Selectable On/Off (Camera 2 Only)
Audio: On Board Speaker (Camera 3 Only)
Menu: OSD
Main Menu: Brightness/Contrast/Colour/Photosensitive (Dimmer), Language, Default Setting, Volume, RLUD, (Screen Orientation), VCOM (Exposure), Ruler Setting (Guidelines), AccTime, Version
Operating Temp: -20 degC to +70 degC
Power Input: 10-32V DC (Negative Ground)
Dimensions: 180W x 121H x 26D mm (excluding bracket)
Finish: Matt Black Rubber, Matt Metal
CAMERA:
Image Device: 1/3” IMX225LQR-C
Diagonal Viewing Angle: 140 degree
Horizontal Viewing Angle: 120 degree
Signal System: PAL
Effective Pixels: 1280H x 720V
Resolution: 720p
Sync System: Internal
Orientation: Mirror Image
Night Vision: 18 Infrared LED’s
Illumination: 0.001 Lux with IR on
Ingress Protection: IP69K
Integrated Microphone: Yes
Operating Temp: -20 to 70 deg C
Power Consumption: 3W, 250mA
Dimensions: 98.3W x 67.7H x 68D mm (including Bracket)
Connection: Terminated 4-Pin Female
Power Supply: 12V DC
