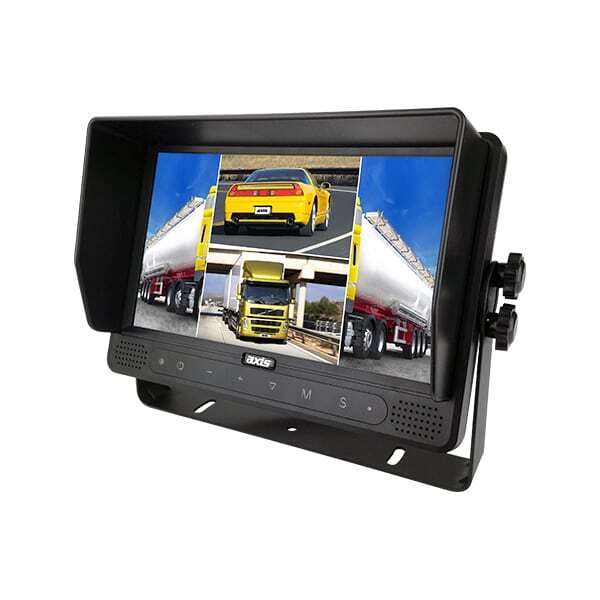

Designed with simple to use features and ideal for a range of heavy duty vehicles & machinery, the JS1409Q allows you to see what is going around you from 1, 2, 3 or 4 cameras. With a large 9” display, touchscreen resistive touch along with multiple camera display modes and automatic camera switching, you’re guaranteed flexibility and peace of mind on the road while driving.
Specifications:
MONITOR:
LCD Size: 9”
Resolution: 800 x 480 RGB (60Hz)
Touch Screen: Resistive Touch; Can recognize up, down, left, right side “swipe”; Two-Point touch for channel switching
Touch Buttons: Yes
Backlighting Adjustment: 4 Manual Levels, 1 Auto Level
System Format: PAL/NTSC
Onboard Loudspeaker: Yes
Mirror Orientation: Horizontal, Vertical, Horizontal-Vertical, Off
Camera Image Display Mode: Single (Left/Right/Front/Back), Dual, Triple, Quad, Picture In Picture (1/2/3), Trefoil, H-Split, Y-Split
Camera Image Adjustment: Brightness, Contrast, Colour, Tint
Menu Languages: English, Francais, Nederlands, Espanol, Deutsch, Italiano
Trigger Lines: 5
Trigger Priority: Yes
Auto Scan: Yes
Reverse Warning Gauge: Yes
Automatic Start-up: Yes when triggered under standby
Automatic Switch to Trigger Channel: Yes
Input: 4 x 4-PIN, 1 x RCA A/V
Output: 1 x RCA A/V
Operating Voltage Range: 10-32V
Short-Circuit Protection: Yes
Dimensions: 232W x 157H x 40D mm
INCLUDED:
Robust Bracket
Stand Mount
Sun Cover
IR Remote
.a

(JS1409Q)

SKU JS1409Q
Barcode # 9310754672912
Brand Axis
Shipping Weight 3.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.250m
