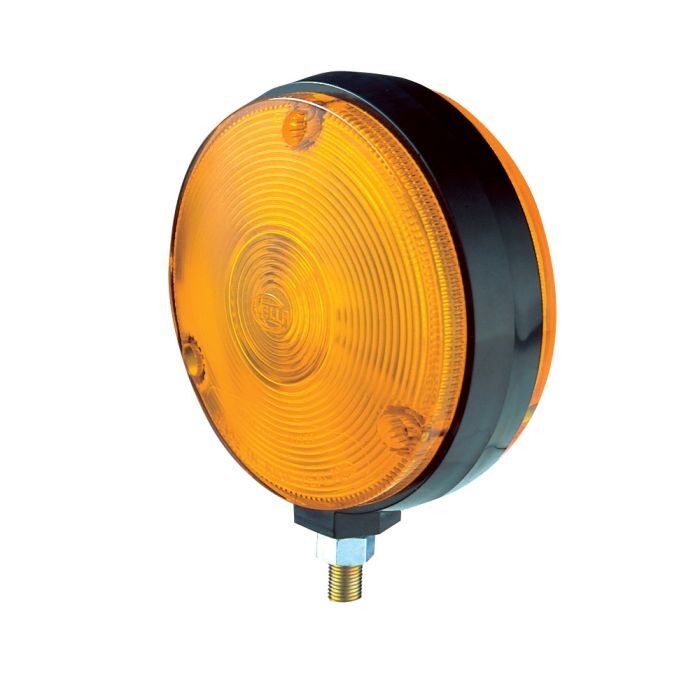

Amber Side Indicator Lamp 1224/V Double Sided Round 108Mm

500 Series Incandescent Front Direction and Supp. Side Direction Indicator Lamp 12/24 Volt 5 or 21 Watt
Amber Illumination
Uses BA15s Bayonet Globes (12V Supplied)
Amber Optical Hardened Acrylic Lens
Black ABS Plastic Housing with mounting screws included
Die-Cast Zinc Single Bolt Mount Bracket for upright or pendant mounting
2 x Blade Terminals
Includes Globe Holder and suitable for insulated earth circuits
ADR 6/00 1A Front Indicator Lamp specifications approved
ADR 6/00 Cat 5 Side Direction Lamp specifications approved when using 5 Watt Globes
Blister Qty: 1
1 Year Warranty
Globes to suit:
BA15s 12 Volt 5 Watt - GL2600BL or 5007
BA15s 12 Volt 21 Watt - GL2620BL or 7506
BA15s 24 Volt 5 Watt - GL2605BL or 5627
BA15s 24 Volt 21 Watt - GL2625BL or 7511
Spare Parts:
2.9800.09 Amber Lens
2.9800.08 Clear Lens
2.9801.01 Red Lens
2.9803.09 Red Lens
2.9800.091 Blue Lens
9.2397.40 Lens Gasket
Specifications:
Colour: Amber
Type: Incandescent
Shape: Round
Voltage: 12/24V
Mount: Surface
Width (mm): 120
Depth (mm): 60
