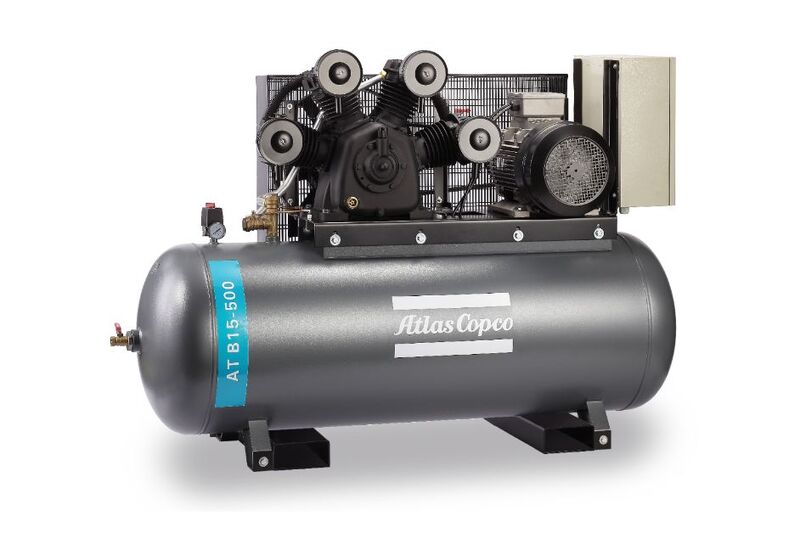

Atb Cast Iron Piston Compressor (At B15-500 Aus)
SKU:1129740164
RRP $13,025.45
$10,557.47
SAVE $2,467.98 (19%)
Not Available In Store
Calculate Shipping
TECHNICAL SPECIFICATIONS:
AT B15-500 - 15 hp/11 kW Piston
Part Number: 1129740164
Model Name: AT B15-500
Power: 15 hp / 11 kW (400/3/50)
Starter / IP: YD / 55
MEPS: MEPS/GEMS
Max Pressure: 10 bar / 145 psi
Tank Volume: 500 l
Pump Displacement: 2082 l/m / 73.5 cfm
Free Air Delivery: 1470 l/m / 51.9 cfm
Current Draw: 23.7 amp
Noise: 78 dB
Cylinders/Stages 4/1
Motor Speed: 870 RPM
Oil: 2 l
Dimensions (L x W x H)/weight (machine): 2000 x 710 x 1370 / 465 kg
Dimensions (L x W x H)/weight (package): 2075 x 760 x 1515 / 535 kg
AT B15-500 - 15 hp/11 kW Piston
Part Number: 1129740164
Model Name: AT B15-500
Power: 15 hp / 11 kW (400/3/50)
Starter / IP: YD / 55
MEPS: MEPS/GEMS
Max Pressure: 10 bar / 145 psi
Tank Volume: 500 l
Pump Displacement: 2082 l/m / 73.5 cfm
Free Air Delivery: 1470 l/m / 51.9 cfm
Current Draw: 23.7 amp
Noise: 78 dB
Cylinders/Stages 4/1
Motor Speed: 870 RPM
Oil: 2 l
Dimensions (L x W x H)/weight (machine): 2000 x 710 x 1370 / 465 kg
Dimensions (L x W x H)/weight (package): 2075 x 760 x 1515 / 535 kg
(1129740164)
| SKU | 1129740164 |
| Barcode # | 9310754835508 |
| Brand | Atlas Copco |
| Shipping Weight | 200.0000kg |
| Shipping Width | 1370.000m |
| Shipping Height | 710.000m |
| Shipping Length | 2000.000m |
