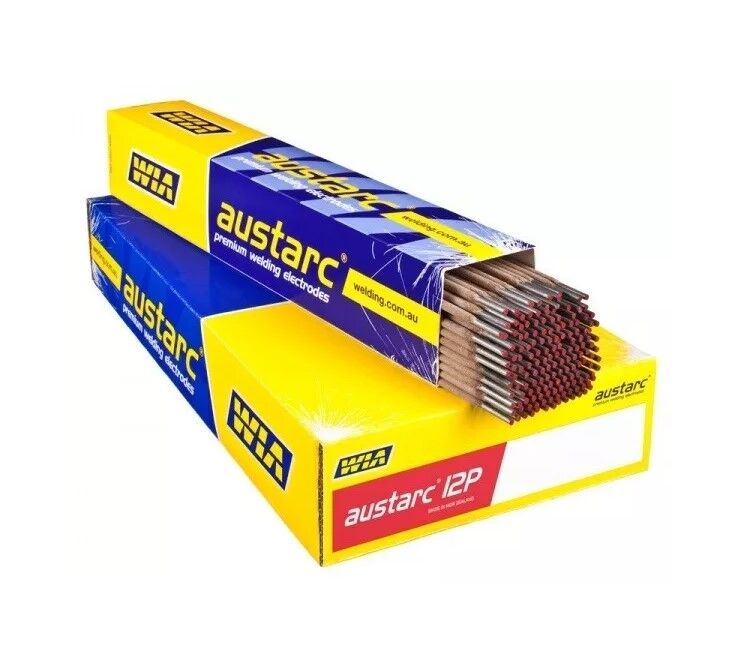

Austrac 12p x 2.5mm Welding Electrodes

Austarc 12P is a smooth running, rutile type electrode for all positional welding of mild steel. It is characterised by a moderately forceful and extremely stable arc. Superb arc starting and restriking on low voltage AC welding machines.
A stiff fast freezing slag for all positional (especially vertical down) fillet welding capabilities. Typical applications include, the all positional welding of galvanised gates/fences, steel furniture, trailers and wrought iron.
Features:
General Purpose Rutile Type Electrode
Versatile/All Positional Capabilities Including Vertical Down
Smooth Performance on Low OCV AC Welding Machines
Applications:
Wrought Iron
Trailers
Steel Furniture
General Purpose Structural Steel
Galvanised Gates and Fences
Identification:
Coating - Brown
Tip - Red
Imprint: WIA 4313A
Classification:
AS/NZS 4855-B - E43 13 A
AWS A5.1: E6013
Specifications:
Electrode Size: 2.5mm
Electrode Length: 300mm
Welding Current Range: 60 - 85A (note: Recommended for DC +/- or AC (minimum 45 OCV) operation)
Arc Voltage Range: 20V
Yeild Stress: 450MPa
Tensile Strength: 500 MPa
Elongation: 26 percent
CVN Impact Values: 70J at 0 degC
Packet Weight: 2.5kg
Approx No. of Rods per kg: 64
