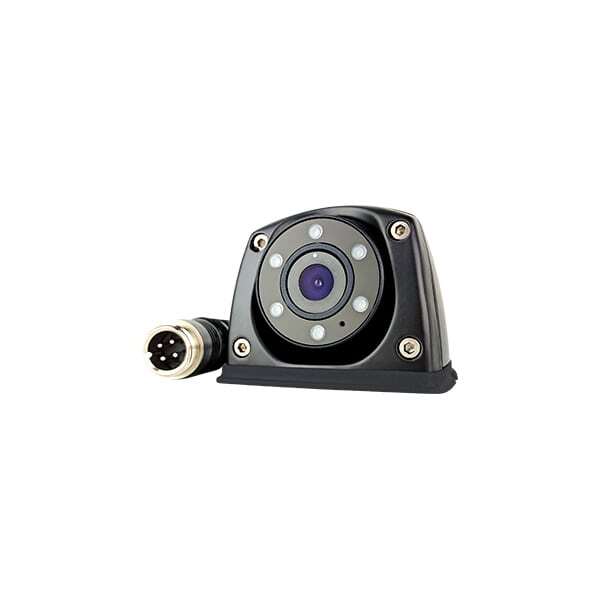

AXIS Multi-Fit Camera IP69 360 Degree Rotating Lens 6XIR 4 Pin

The C40 is a compact, 12 volt 1/3” full colour side mount rearview camera. Featuring an IP69 weatherproof chassis, 6 infrared LEDs for night vision along with adjustable orientation – you’re guaranteed peace of mind and confidence while reversing.
Specifications:
Image Sensor: 1/3” Colour CMOS
Image Device: High Definition PC1089K
Viewing Angle: 150° (Diagonal)
Rotating Lens: 360° (Manually Adjustable)
Angle Adjustment: Up/Down
Effective Pixels: 728 x 488
Resolution: 500 TV Lines
TV System: PAL
Image: Mirror
Sensing Area: 4.6228mm x 3.6112mm
Scanning System: 2:1 Interlace
Sync. System: Internal
Minimum Illumination: .01 Lux (Day) 0 Lux (with IR)
Video Output: 1.0Vp-p, 75Ohm
Signal to Noise Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: Auto, 1/50
Operating Temperature: -20 degree to 60 degree C
Connection: 4 Pin Connector
Current Consumption: 100mA
Power Supply: 12V DC – Negative Ground
Protection: IP69 Water, Dust, Shatterproof
Construction: Die Cast Housing
Night Vision: 6 IR LED – Approx 5m Distance
Resistor: Light Sensitive
Mounting: Left/Right/Rear or other location
Dimensions: 56.77W x 41.46H x 68.38D mm
INCLUDED:
Installation Manual
Installation Hardware
