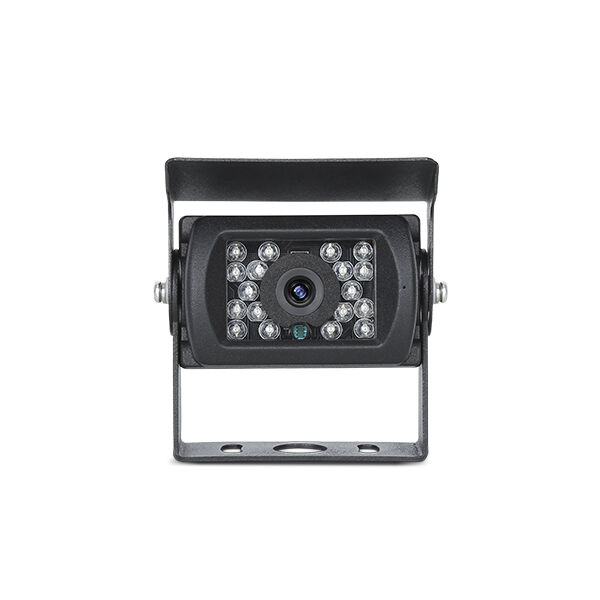

Axis HD CCD Camera
SKU:CC08
The CC08 is a heavy duty waterproof camera that connects easily to Axis LCD monitors offering a clear image of the reversing area, providing drivers with peace of mind.
Specifications:
Image Sensor: 1/3” Sony CCD
Auto Lens: f2.9mm
Electronic Shutter: Auto
Diagonal Viewing Angle: 120 degree
Horizontal Viewing Angle: 90 degree
Signal System: PAL
Resolution: 700 TV Lines
Sync System: Internal
Orientation: Mirror Image
Night Vision: Yes, 18 LED
Illumination: 0 Lux with IR on
Ingress Protection: IP69K
Microphone: Yes
Operating Temperature: -20 degC to approx. 70 degC
Dimensions: 70W x 45H x 60D mm (Excl Bracket)
Connection: Terminated 4-Pin Male
Power Supply: 12V DC (From Monitor)
Extention Cable: 15m 4 Pin Male to 4 Pin Female
.a
Specifications:
Image Sensor: 1/3” Sony CCD
Auto Lens: f2.9mm
Electronic Shutter: Auto
Diagonal Viewing Angle: 120 degree
Horizontal Viewing Angle: 90 degree
Signal System: PAL
Resolution: 700 TV Lines
Sync System: Internal
Orientation: Mirror Image
Night Vision: Yes, 18 LED
Illumination: 0 Lux with IR on
Ingress Protection: IP69K
Microphone: Yes
Operating Temperature: -20 degC to approx. 70 degC
Dimensions: 70W x 45H x 60D mm (Excl Bracket)
Connection: Terminated 4-Pin Male
Power Supply: 12V DC (From Monitor)
Extention Cable: 15m 4 Pin Male to 4 Pin Female
.a
(CC08)
| SKU | CC08 |
| Barcode # | 9310754755899 |
| Brand | Axis |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.150m |
| Shipping Length | 0.200m |
