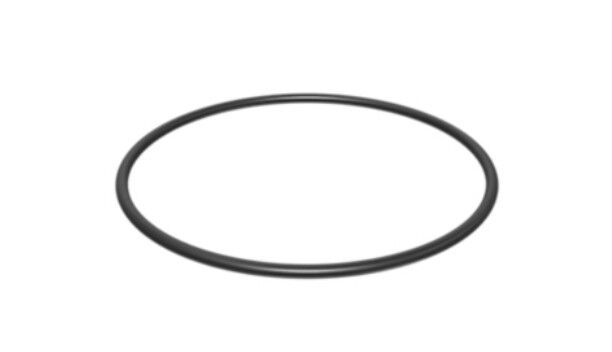

Seal O Ring

O-ring
Description:
O-Rings are used in static sealing and some dynamic applications.
Attributes:
Cat O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain Cat O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.
With over 2500 O-Rings in different sizes and materials, Cat O-Rings are your best solution for your Cat and other mobile equipment O-Ring needs.
Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals.
Applications:
O-Rings are used in many static and dynamic joints throughout Cat machines and engines.
Specs:
Seal Inside Diameter (mm): 164.46
Seal/O-Ring Type: Standard
Primary Sealing Material: Rubber
Cross Section Diameter (mm): 5.33
Inside Diameter (mm): 164.46
Outside Diameter (mm): 175.12
Material: Nitrile (NBR)
Material Description: Nitrile (NBR) rubber is capable of service temperatures of -40 to 100C and is resistant to fuel oils, gasoline, ultra low sulfur diesel fuel and lubricants. Nitrile rubber is not recommended for applications that require resistance to bio-diesel or coolant.
Hardness (Shore A): 75
SAE AS568 Dash Size: Not available
Coating: None
Color: Black
Color Notes: Actual o-ring color may differ from image.
Notes: Dimensions and material descriptions provided for reference only.
