Dc Power Supply 24V 20Amp 9-32V To 24V 3X Output Voltage
SKU:DPS2420
RRP $1,249.80
$1,029.71
SAVE $220.09 (18%)
Not Available In Store
Calculate Shipping

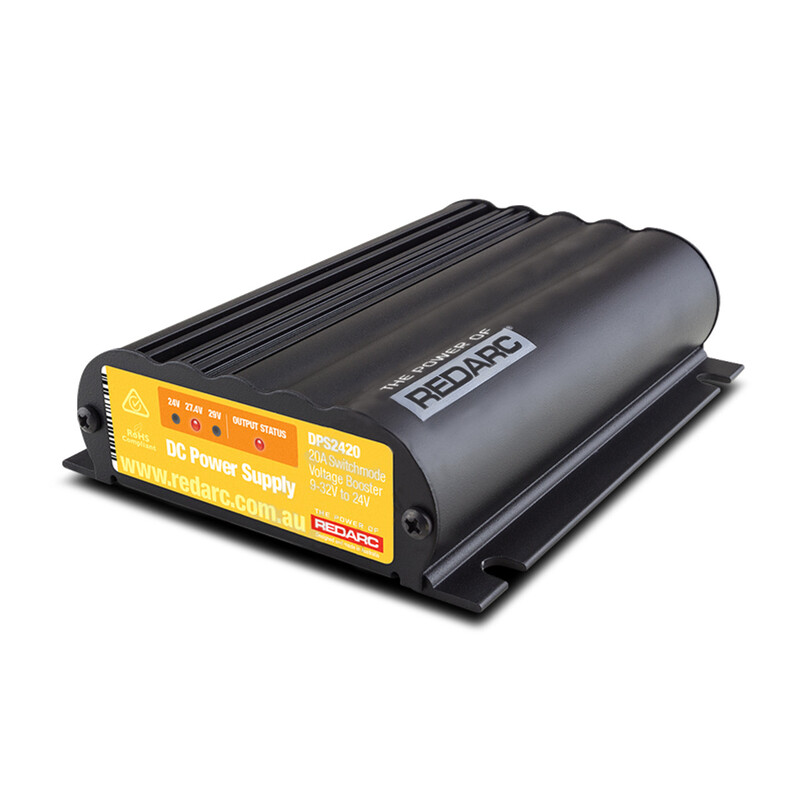

The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides greater efficiency with regulated power for all sensitive load requirements, such as lamps, TVs, radios, fridges, and pumps with voltage output from a 24V automotive power system.
SPECIFICATIONS:
BRAND: REDARC
NO LOAD CURRENT: less than 100mA
STANDBY CURRENT: less than 5mA
CONVERSION EFFICIENCY: greater than 94 percent
OPERATING TEMPERATURE: -58 degF to 122 degF
WEIGHT: 1.5 lb (680 g)
HEIGHT: 1.46" (37 mm)
WIDTH: 4.72" (120 mm)
DEPTH | LENGTH: 5.91" (150 mm)
INPUT VOLTAGE: 9 - 32V
OUTPUT VOLTAGE: 24V DC
MAX. RATED OUTPUT CURRENT: 20A
INPUT FUSE RATING: 60A
OUTPUT FUSE RATING: 40A
SPECIFICATIONS:
BRAND: REDARC
NO LOAD CURRENT: less than 100mA
STANDBY CURRENT: less than 5mA
CONVERSION EFFICIENCY: greater than 94 percent
OPERATING TEMPERATURE: -58 degF to 122 degF
WEIGHT: 1.5 lb (680 g)
HEIGHT: 1.46" (37 mm)
WIDTH: 4.72" (120 mm)
DEPTH | LENGTH: 5.91" (150 mm)
INPUT VOLTAGE: 9 - 32V
OUTPUT VOLTAGE: 24V DC
MAX. RATED OUTPUT CURRENT: 20A
INPUT FUSE RATING: 60A
OUTPUT FUSE RATING: 40A
(DPS2420)
| SKU | DPS2420 |
| Barcode # | 9310754887439 |
| Brand | Redarc |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
