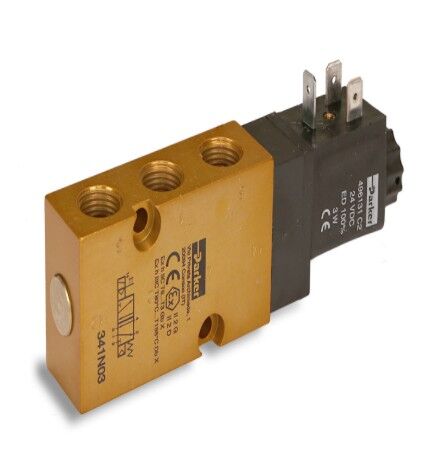

Description: 24Vdc 22Mm Coil - 496131C2
SKU:496131C2
RRP $172.48
$117.70
SAVE $54.78 (32%)
Not Available In Store
Calculate Shipping
Technical Specifications:
Maximum Fluid Temperature: 50 °C
Coil Temperature Range: -40 +50 °C
Function: Spring & air return
Power Supply Voltage: 24V DC
Actuation Type: Solenoid Operated
Port Size: 1/4" G
Flow Coefficient 1: 1250 l/min
Valve Type: 5/2 Way
Insulation Class: F 155°C
Port Type: Namur
Body Material: Anodized Aluminum
Media: Dry or Lubricated Air
Orifice Size: 7 mm
Minimum Operating Pressure: 2.5 bar
Maximum Operating Pressure: 10 bar
Minimum Fluid Temperature: -20 °C
Seal Material: NBR
Coil Power Consumption: 3 W
Electrical Connection: 2 P + E Plug According to EN 175301-803 Type B
Coil Specifications Met: CE - EAC
Specifications Met: Manual Override
ATEX Specifications Met: n/a
Maximum Fluid Temperature: 50 °C
Coil Temperature Range: -40 +50 °C
Function: Spring & air return
Power Supply Voltage: 24V DC
Actuation Type: Solenoid Operated
Port Size: 1/4" G
Flow Coefficient 1: 1250 l/min
Valve Type: 5/2 Way
Insulation Class: F 155°C
Port Type: Namur
Body Material: Anodized Aluminum
Media: Dry or Lubricated Air
Orifice Size: 7 mm
Minimum Operating Pressure: 2.5 bar
Maximum Operating Pressure: 10 bar
Minimum Fluid Temperature: -20 °C
Seal Material: NBR
Coil Power Consumption: 3 W
Electrical Connection: 2 P + E Plug According to EN 175301-803 Type B
Coil Specifications Met: CE - EAC
Specifications Met: Manual Override
ATEX Specifications Met: n/a
(496131C2)
| SKU | 496131C2 |
| Barcode # | 9310755083045 |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
