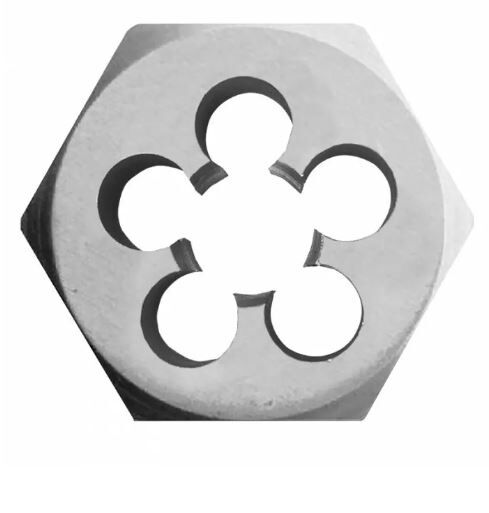

Die Nut M12 X 1.25 Spark Plug

This metric coarse die nut has a flat crest and the thread has clearance at the root allowing external thread and internal thread to engage well. Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength. The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).
Features:
Flat crest with clearance at the root, allowing external thread and internal thread to engage well
Coarse with a thread angle of 60 degree
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength
Manufactured from high speed steel material to International DIN standards.
For general use and are available in all sizes individually.
Suitable for material up to 1000N/mm2.
Toolex Industrial HSS button dies and hexagonal die nuts are used to cut new threads, cleaning & re-storing existing threads on studs & bolts.
Specifications:
Size - M12 x 1.25mm
Type - Nut
Material - High Speed Steel (HSS)
