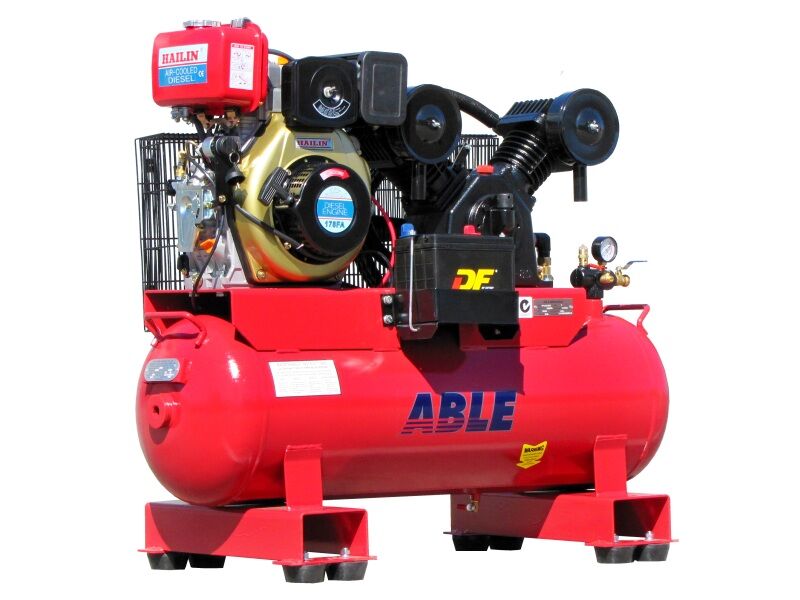

Diesel 20CFM Compressor 7HP 100 Litre 145PSI

Key Features:
Minesite Compliance: Pressure vessel design registered for mine use
Long Life: Cast iron air pump will go the distance
High-Pressure Pump: Perfect for high-pressure applications
Diesel Engine: Reliable, economical, and durable
Versatile: Strong structure and forklift points will survive years of commercial use
Engine model: 178
Engine type: Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Compression ratio: 19:01
Horse Power/rpm: 7 HP 3000 RPM
Starting system: Electric starter, Battery included
Rotation direction: Clockwise, (View from flywheel)
Engine Lubricant: SAE15W40 (above CC grade)
Battery: With 12V-18Ah
Compressor: Two Cylinder, Cast Iron Construction
Compressor Drive: Twin V-Belt
Compressor RPM: 770 RPM
Tank Capacity: 100 Litres
Compressor Displacement: 20CFM / 566LPM
Compressor Airflow: 15CFM / 425LPM
Pressure Gauge: High Pressure gauge MPA/PSI
Outlets: 1 × 1/2 inch, 1 × 1/4 inch Ball Valves
Shipping Dimensions: 121 x 52 x 111 cm (LxWxH)
Shipping Weight: 208KG
