No.8100 - Diesel Compression Gauge (37 Pieces)

RRP $707.70

$583.11

SAVE $124.59 (18%)

Not Available In Store

Calculate Shipping

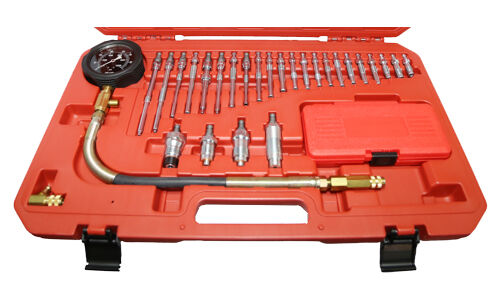

Diesel compression gauge includes high quality hydraulic gauge, four injector adaptors and 32 glow plug adapters. Used when injectors are difficult to remove. Additional insert case includes a universal injector adapter and clamps for fixing injectors.

32 Glow Plug Adaptors From No.8100 Set (Items Available Separately):

Item No.	Size	Length
8100-1	M12 x 1.25 Pitch	17.5mm
8100-2	M12 x 1.25 Pitch	20mm
8100-3	M10 x 1.25 Pitch	28.5mm
8100-4	M10 x 1.25 Pitch	42mm
8100-5	M10 x 1.25 Pitch	45mm
8100-6	M10 x 1.25 Pitch	44mm
8100-7	M10 x 1.0 Pitch	54mm
8100-8	M10 x 1.0 Pitch	43mm
8100-9	M10 x 1.0 Pitch	26mm
8100-10	M10 x 1.25 Pitch	32mm
8100-11	M10 x 1.0 Pitch	35mm
8100-12	M12 x 1.25 Pitch	58mm
8100-13	M10 x 1.0 Pitch	71mm
8100-14	M10 x 1.0 Pitch	59mm
8100-15	M8 x 1.0 Pitch	61mm
8100-16	M10 x 1.25 Pitch	85mm
8100-17	M10 x 1.0 Pitch	80mm
8100-18	M10 x 1.25 Pitch	69mm
8100-19	M10 x 1.25 Pitch	102mm

Item No.	Size	Length
8100-20	M9 x 1.0 Pitch	73mm
8100-21	M10 x 1.25 Pitch	85mm
8100-22	M10 x 1.0 Pitch	88mm
8100-23	M22 x 1.5 Pitch	43mm
8100-24	M24 x 1.5 Pitch	28mm
8100-25	M20 x 1.5 Pitch	29mm
8100-26	M24 x 2.0 Pitch	26mm
8100-27	M10 x 1.25 Pitch	24mm
8100-28	M10 x 1.25 Pitch	25mm
8100-29	M10 x 1.25 Pitch	17mm
8100-30	M10 x 1.25 Pitch	21mm
8100-31	M10 x 1.25 Pitch	17mm
8100-32	M10 x 1.25 Pitch	175mm
8100-33	Clamp	12mm
8100-34	Clamp	13mm
8100-35	Clamp	20mm
8100-36	1000psi Gauge Assembly
8100-C6	90° Connector
