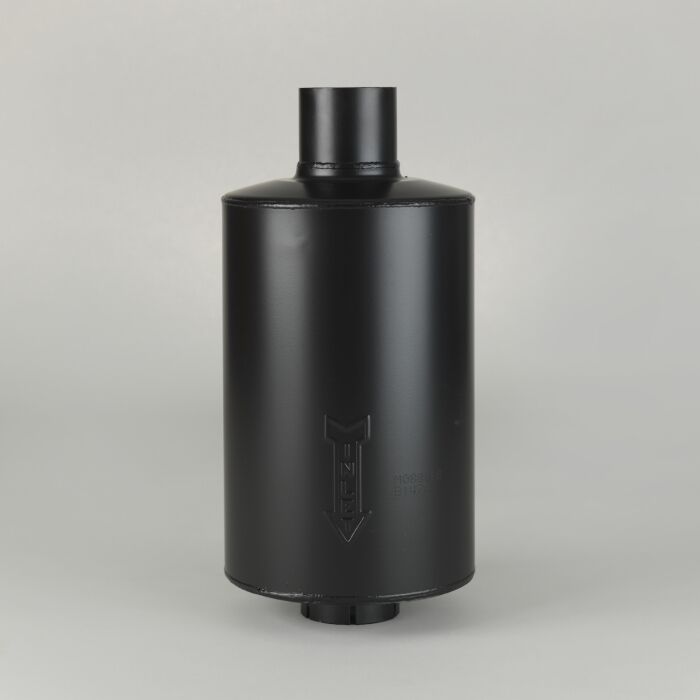

Donaldson Air Silencer OUTLET 79.5 INLET 76

Attributes:
Inlet Diameter: 76.66 mm (3.02 inch)
Outlet Diameter: 79.5 mm (3.13 inch)
Body Diameter Maximum: 203 mm (7.99 inch)
Body Length: 309.6 mm (12.19 inch)
Overall Length: 431.8 mm (17.00 inch)
Rated Flow LR: 13.6 m3/min (480 cfm)
Rated Flow MR: 19.3 m3/min (682 cfm)
Rated Flow HR: 23.6 m3/min (833 cfm)
Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
Attenuation LR: 10 dBA
Attenuation HR : 15 dBA
Style: Style 1
