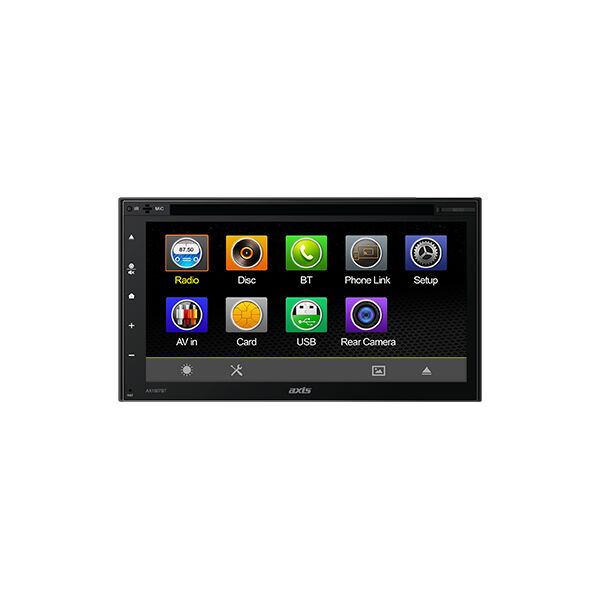

6.8" Double Din Head Unit

The AX1807BT offers a modern and sleek design making this complete multimedia system with Bluetooth the perfect upgrade for your vehicle. The large 6.8” LCD display allows a wide selection of media formats such as USB, SD, DVD and more! With Mirrorlink, you can display and control most Android devices via USB. The AX1807BT also provides a variety of Audio and Display options to give you the perfect entertainment experience. With the added safety of a built-in reverse camera input, you can reverse with confidence.
Description:
6.8” DVD MULTIMEDIA SYSTEM WITH BLUETOOTH
Specifications:
GENERAL:
6.8” Capacitive Touchscreen LCD (800 x 480)
WinCE OS
Steering Wheel Control (Programmable)
5 x Screen Brightness Presets
Custom Screen: Contrast, Brightness, Colour, Hue and Sharpness
Digital Clock 12/24 Hour Mode
ISO 2-DIN Mounting
Speaker Impedance 4-8ohm
9.0 – 15.8V DC Voltage
20 degree to +60 degree C Operating Temp
170W x 98Hmm Face Panel
178W x 103H x 175Dmm Overall
TUNER:
PLL Synthesized AM/FM
ELITE AM/FM Tuner
FM 87.5-108MHz; AM522-1710KHz
30 Presets (18 FM/12 AM)
MULTIMEDIA:
Mirror Link: Android Display and 2-Way Control via USB (Compatible with most Android Smart Phones.)
Apple – Not Supported
1 x USB (2.0) 2A Charging
A/V RCA Input
1 x Camera Input
2 x Video Outputs
Supports DVD/VCD/CD/MP3
Audio Formats: MP3, WMA, WAV, APE, OGG, FLAC, AC3
Video Formats: DivX, RMVB, MP4
Image Formats: JPEG, BMP, GIF, PNG
AUDIO:
4 x 45W Max Power
4 x 26W RMS (1 KHz 10 percent THD)
4 x 18.5W RMS (1 KHz 0 percent THD)
6 x EQ Presets
1 x Custom Audio: 8 Band EQ
4 x Surround Sound Presets
Loud/Mute
2 x RCA Pre-out
1 x Sub RCA Pre-out
BLUETOOTH:
A2DP Audio Streaming
Hands Free Phone
Phonebook and Search
Call History
Internal Microphone
INCLUDES:
Remote Control
ISO Wiring Harness
Installation L Brackets
2 Year Warranty
