No.4462 - Flow Meter Common Rail Fuel Return Tester

Suitable for injector return side of a C R D system. This kit can help to diagnose poor acceleration, general lack of engine power, rough engine running and no engine starting.

Contents:

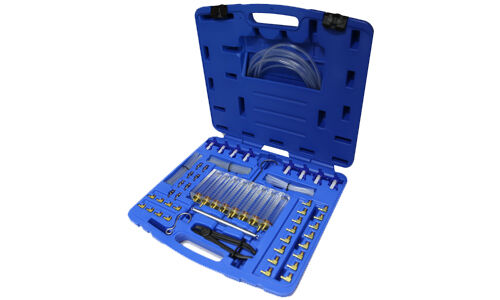

Graduated acrylic measuring block with hook for up to 8 cylinders. Hoses with quick replace couplings and a short pipe sets. Spring steel and flexible line clamp. Injector adaptor sets for Bosch, Simens, Denso and Delphi.

Test Diagnosis:

Check the measuring chambers. As soon as the diesel fuel volume is available for a diagnosis (when the chamber is half full), switch off the engine. Make a diagnosis of the test result.

The chambers should contain a balanced amount of diesel fuel. When one chamber presents a different amount of diesel fuel then it may be necessary to repair or replace the faulty injectors.
