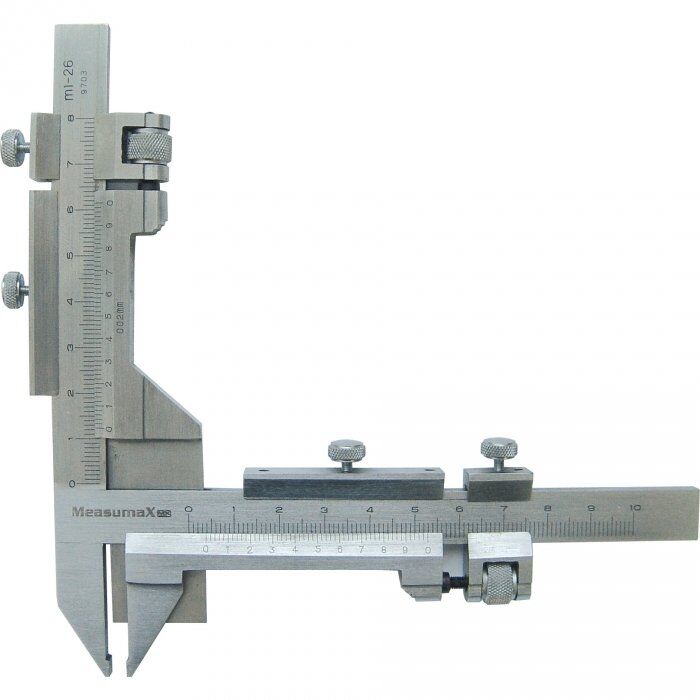

Gear Tooth Vernier Caliper - 33-234 - Q234
SKU:Q234
RRP $387.20
$276.32
SAVE $110.88 (29%)
Not Available In Store
Calculate Shipping
Features:
One of the benefits using a caliper is that the gear does not have to be removed from the machine
The caliper consists of two adjustable verniers, that reference two dimensions on the gear and provide a measurement
Vertical scale: Measures the depth of the teeth from the top of the pitch line
Horizontal Scale: This is used to measure the Chordal Thickness of the gear tooth
Specs:
Range: 1 - 26 Module
Graduations (mm): 0.02
Accuracy (mm): ±0.02
One of the benefits using a caliper is that the gear does not have to be removed from the machine
The caliper consists of two adjustable verniers, that reference two dimensions on the gear and provide a measurement
Vertical scale: Measures the depth of the teeth from the top of the pitch line
Horizontal Scale: This is used to measure the Chordal Thickness of the gear tooth
Specs:
Range: 1 - 26 Module
Graduations (mm): 0.02
Accuracy (mm): ±0.02
(Q234)
| SKU | Q234 |
| Barcode # | 9310755080617 |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.350m |
| Shipping Height | 0.100m |
| Shipping Length | 0.500m |
