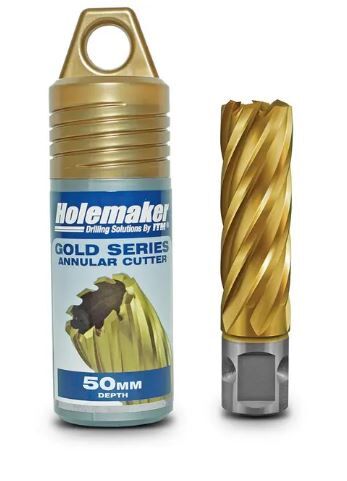

Gold Series 24X50

HOLEMAKER GOLD SERIES Annular Cutters are an industrial quality cutting solution preferred by the industry for their exceptional cutting performance and life.
GOLD SERIES Cutters are manufactured from M2AL High-Speed Steel which is a surface alloy material with a hardness of up to 67.5 HRC. M2AL is specifically designed to increase cutting tool endurance. They also feature a TiN (Titanium Nitride) Coating which further increases the tool's life by increasing surface hardness to 85 HRC while having the added benefit of reducing surface friction by up to 30 percent. Together, these two features greatly increase the endurance of the cutting edges.
GOLD SERIES Cutters are designed with a universal, Multi-Fit 3/4" shank featuring two flat sections. This enables GOLD SERIES Cutters to be used with most magnetic base drilling machines.
Features:
Made from M2AL High-Speed Steel - Designed for increased endurance of the cutting edge
Titanium Nitride (TiN) Coating - Increases surface hardness to 85 HRC while also reducing friction by up to 30 percent which delivers longer cutter life
Step Hardened Process - This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased performance while maintaining a softer body which is less susceptible to breakage than standard high-speed steel cutters
Multi-Cut Geometry - Provides smooth and fast cutting with decreased chatter. Also increases the cutters ability to efficiently remove swarf away from the cut as well as helps to enhance centering
Fully Ground with Internal Relief - This permits the cutter to produce reamed quality, burr-free holes while also requiring reduced torque and horsepower requirements from the drilling machine
Universal Shank - 3/4" (19.05 mm) Shank with two flat sections to suit most brands of magnetic drilling machines
Specifications:
Diameter: 24 mm
Depth of Cut: 50 mm
Shank Diameter: 3/4" (19.05 mm) Multifit
For use with
HOLEMAKER Pilot Pins
SP16004 - 1/4" (6.34 mm) x 102 mm HSS Pilot Pin
