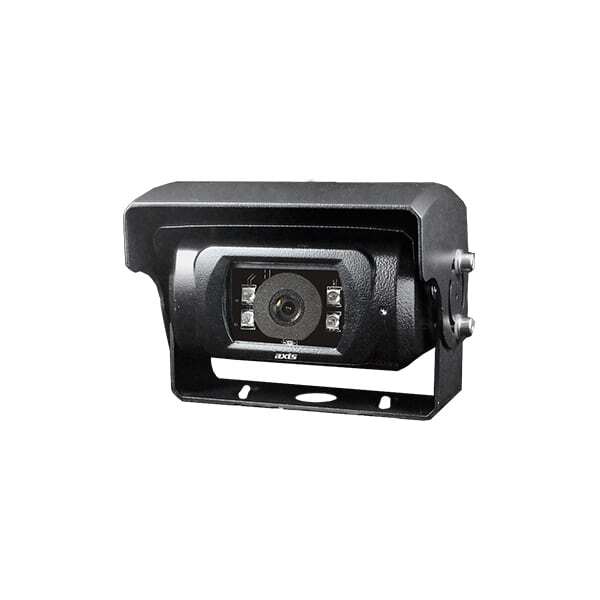

Axis CCD Camera With Auto Shutter

The CC70M performs in rugged conditions and is suitable for 4WD, trucks and heavy duty applications in 12-24V vehicles. The motorised shutter protects and keeps the lens and camera window clean to retain high image quality. Shutter automatically opens when reverse gear is selected.
Specifications:
– Image Sensor: 1/3” Sharp CCD
Signal System: PAL
Picture Resolution: 976 x 582 Pixels
Sensing Area: 4.9mm x 3.7mm
Sync System: Internal
Horizontal Resolution: 600 TV Lines
Signal-to Noise Ratio: Better than 48dB
Audio Function: Yes
Backlight Compensation: Auto
White Balance: Auto
Image: Mirror / Normal Switchable
Video Output: 1.0Vp-p, 75-Ohm
Viewing Angle: 120 degree
Ingress Protection: IP69
Power Supply: DC 10-32V
Current Consumption: 250mA
Operating Temperature: -20 to around +70 degreeC
Minimum Illumination: O Lux
Infrared LED Lamps: 4
Night Vision Distance: 10m (Approx)
Electronic Shutter: 1/50-1/10,000 Seconds
INCLUDED:
15 Metre Extension Cable (4 Pin Locking Connectors)
4-Pin F to around RCA M Adaptor Lead
Mounting Bracket
Visor
