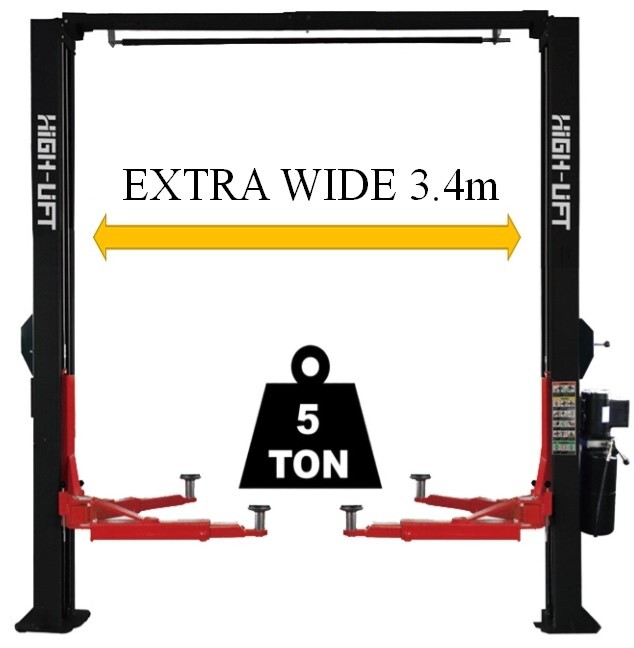

Hoist 2 Posts 5T Extrawide Clear Floor Car Hoist With 3 Stage Arms Single Point Release 3.4m Between Columns

Features:
Extra Thick Columns
Comes with double hydraulic rams with control equalization cables for double the safety
Dual-cylinder lifting system, more stable and faster.Cable-equalization system
Chain-driven system, faster lifting speed.
Single lock release system, safe and reliable.
Wear-resistant, heat-resistant and high strength macro molecular polyethylene slide blocks
Pass 120 percent capacity dynamic load test and 150% capacity static load test.
Aussie Car Hoists Are Manufactured & Designed To Aust Standards EN1493-2010, BS EN
Aussie Car Hoists Are Work Safe Approved
Adjustable high quality screw type lift pads
Also Comes With Bonus Pad Height Extenders
Specifications:
Hydraulic fluid required for hoist is standard AW32 grade
Powder Coated Finish
Available In Both 3 Phase & Single Phase Will come Standard With Single Phase Pump Unless
Otherwise Stating You Want 3 Phase
Power : 240V OR 415V
Lifting capacity : 5000kg
Maximum lifting height : 1800mm
Minimum Pad Height : 110mm
Clearance between posts : 3400mm
Overall height : 4420mm
Overall width : 3980mm
Lifting arms maximum length : 1800mm
Lifting arms minimum length : 880mmLifting time : less than or equal to 60 sec
Oil tank capacity : 10L
Lock : Manual single Point
Hydraulic fluid required for hoist is standard AW32 grade
Elevating system : Chain type
Minimum concrete thickness is 5 inches, if you don”t have this you will need to purchase support plates we have advertised
Must be minimum of 6 inches away from edge of concrete
