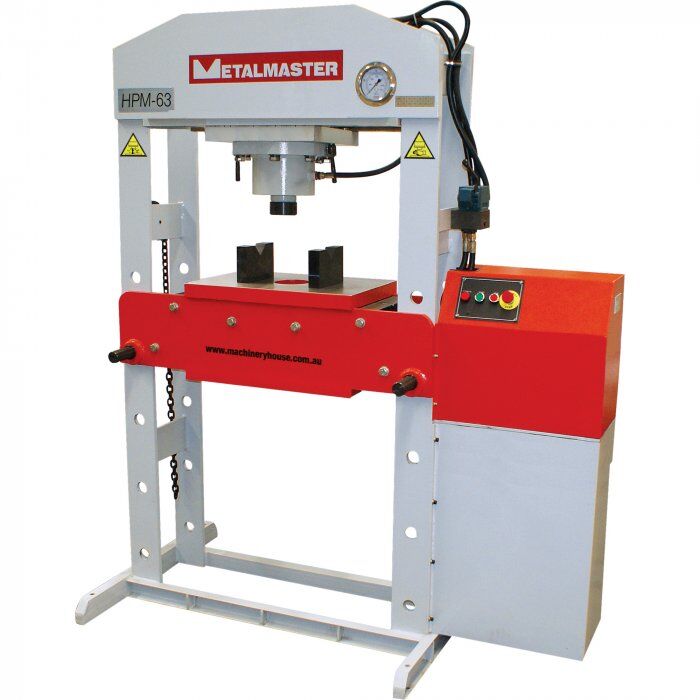

HPM-63T - Industrial Motorised Hydraulic Press with Movable Cylinder - 63 Tonne

Features:
H frame design with welded steel frame construction
Movable cylinder (left-right) allows operator to reposition the cylinder for off centre work
Electric/Hydraulic operation provides smooth, consistent pressing action
Joystick control for ram stroke and return
300mm Ram stroke
Ram speed down 6.7mm/sec, returns 5.9mm/sec
Pressure gauge fitted for easy control of pressing operations
Height adjustable worktable with 5 adjustment positions
Heavy one piece steel work plate and pressing blocks
Work table height easily adjusted with the assiatnce of the ram
Reinforced table support holes with high tensile setting pins
Safety overload valve
Powerful TEFC motor
Ideal for any industrial workshop for the repair of axles, shafts, & press fit of bearings & bushings
Includes
Heavy one piece steel work plate
Pair of double sided pressing blocks (Vee & Flat)
Table raising and lowering chains.
Specifications:
MODEL: HPM-63T
(Tonne)Pressing Capacity: 63
(Type)Hydraulic Ram Operation: Motorised System(Yes / No)Sliding Ram (left-right): Yes
(mm)Width Between Front Posts: 895
(mm)Width Between Side Posts: 275
(mm)Table Top Opening - (Front to Back): 325
(mm)Ram To Table (Max.): 900
(mm)Piston Ram Stroke: 300
(mm)Ram Diameter: diameter 80
(kW / hp)Motor Power: 4 / 5.3
(V)Voltage: 415
(mm)Floor Space (W x D x H): 1700 x 1000 x 2070
(kg)Nett Weight: 912
