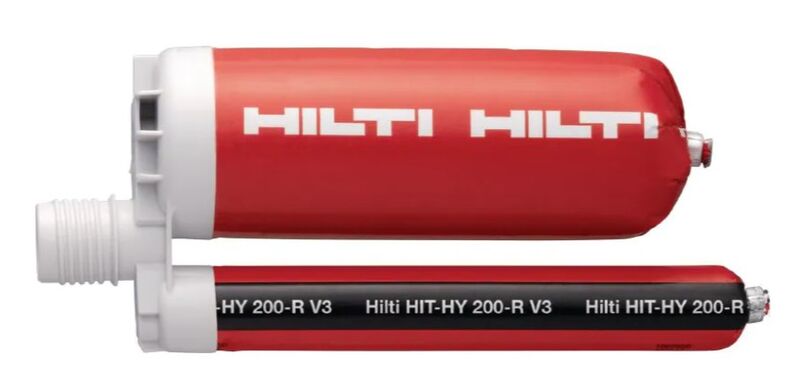

Injectable Mortar HY200-R V3 500g

Ultimate-performance injectable hybrid mortar with approvals for post-installed rebar connections and anchoring structural steel baseplate
Base materials: Concrete (cracked)
Seismic loading: Yes
Fire resistance: Yes
Features:
Practical and versatile adhesive anchor – no hole cleaning required when using HIT-Z anchor rods. Suitable for use in cracked and uncracked concrete with rebar and all anchor rods
Optimized for rebar – longer working time suitable for post-installed rebar and base material temperatures from -10 to +40 degC
Part of Hilti SafeSet system – no extra hole cleaning may be needed if you're drilling with TE-CD or TE-YD hollow drill bits in combination with Hilti vacuum cleaners
Extensive approvals available – fulfills the requirements of the most demanding ICC-ES and ETA C2 approvals for seismic applications. Holds ETA approvals for rebar and anchor designs with a service life up to 100 years
Optimized embedment depth – higher mortar strength makes more efficient embedment depths a possibility, and may result in post-installed rebar with performance higher than cast-in bars
Applications:
Structural concrete connections with post-installed rebar
Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
Anchoring structural steel connections (e.g. steel columns, beams) to concrete
Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
Concrete connections designed both as rigid and as simply supported
