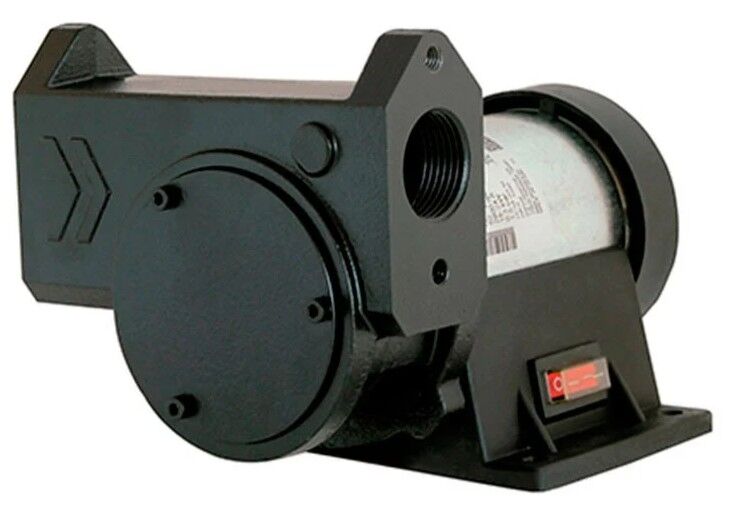

Iron Pump -50L/ per min 12V - 00001-CF00000

IRON-50 24V DC · 50 l/min
Self-suction - self-priming. Eccentric of self-adjusting blades
With recirculation bypass
Suction: 2.7 m · Delivery: 20 m
Priming pipe suction: 5 m
Free flow: 50 l/min
Consumption: 18-24 A (12 VDC) and 9-17 A (24 VDC)
Motor: 0.30 kW (12 and 24 VDC) self-ventilated · dust protected
S2 30´ duty
3,000 rpm
Bypass pressure: 1.2 bar
Connection through F1" (BSP) threads and flanges
It has built in a cleaning steel filter of 350 µm (micron).
ON/OFF luminous switch with IP-55 protection
2 m cable with clamps
Anti-rust treatment
Size and weight (approx.):
Dim.: 160x200x137 mm (lenght x width x height)
Weight: 4.5 kg
