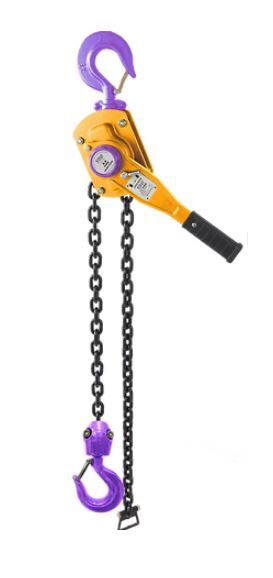

Leaver Hoist 250KG

Description:
All Sunny Lifting lever blocks are manufactured and proof tested to AS1418.2.
Fitted with 100 percent proof tested electrostatic black coating G80 alloy chain.
Lightweight and low headroom design allow being easily transported and used in confined spaces.
Stainless steel riveted tag suitable for underground mining application.
Upper and lower hooks feature extra-wide throat openings to allow for easier attachment to loads.
Robust cast hook latch provides durability and secures the load engagement.
Double Pawl Mechanism provides a longer working life.
Needle roller bearing allows hook swivel 360 degree for faster positioning.Three raised points on the hook allow operators to measure the hook to detect overload or deformation.
Forged chain ring can hold the loads if chain incidentally passes through the hoist.
Standard height of lift is 1.5 metre. Individually serial numbered with a test certificate and instruction manual supplied.
Specifications:
Standard Lift (m): 1
Rated capacity tons: 0.25T
Effort required to Lifted Rated Load (N): 160
No. of Chain Falls: 1
Load Chain Diameter (mm): 4
Net weight (kg): 2.7
Extra weight per metre extra lift kg: 0.41
