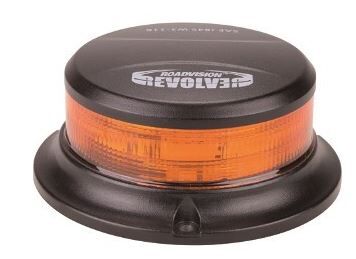

LED Beacon Micro Revolver Series 10-30V Amber Fixed Mount 32SMD LEDs 28W 10 Function SAE Class 1 112x48mm

Description:
Roadvision’s RB112 Series compact 360 degree high intensity beacons are at the forefront of automotive lighting technology..... Featuring state-of-the art LED technology, the REVOLVER Series of Roadvision LED beacons are specifically designed and engineered to not only meet, but exceed Australian and international regulations. With a tough Aluminium housing and impact resistant polycarbonate lens, the RB112 Series are built to last in even the toughest conditions. Featuring 32 SMD LED’s and with 10 selectable flash patterns - including single, double, triple, quad and simulated rotating - the RB112 Series are the perfect LED beacon for a wide range of industrial applications.
Compact low profile 10 function 360deg high intensity beacons
Single, double, triple, quad & simulated rotating fash patterns
Multi-volt 10-30V input & low current draw
32 SMD LED’s produce 28W
100,000 hour rated LED lifespan
Maintenance free solid state technology
Tough polycarbonate lens and alluminium body
Waterproof IP67 rated and vibration proof
Compact low profile 112 x 48mm body
Available in 3 hole fixed, magnetic or DIN Pole mounts
EMC, ECE R10 & SAE J845 class 1 approved
Specifications:
Current Draw Amps: 1.9A 13.8V
Lens - Material: Polycarbonate
Light Source: 32 SMD LED’s
Weatherproofing: IP67
Width (mm): 112mm
Colour: Amber
Brand: Roadvision
Cable Length: 300mm Sheathed
Approvals: EMC, ECE R10 & SAE Class 1
Mounting Type: 3 Hole Fixed 103mm Centre to Centre
Voltage: 10-30v
Body Material: Aluminium Housing
Wiring: red: +ve, blue: -ve, grn: pattern
Warranty: 5 Years
Wattage: 28w
Height (mm): 48mm
Flash Pattern: 10 Selectable Flash Patterns
