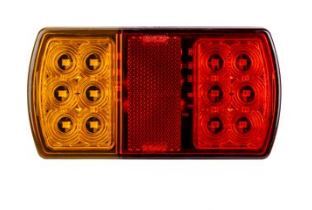

LED Rear Combination Lamp 10-30V Stop/Tail/Indicator/Reflector Surface Mount 150 x 80mm Single Blister

Specifications:
Lens Construction: Polycarbonate
Housing Construction: Polycarbonate
Mounting Hole Centre to Centre X: 100mm
IP Rating: IP68
Lens material: Polycarbonate
Housing Material: Polycarbonate
Dimensions: 150 x 80 x 37mm
Number of LED's: Ind - 6 LED's, Stop/Tail - 6 LED's
Current Draw Amps: Ind - 0.09A, S/T - 0.09/0.02A 13.8V
Mounting Hole Centres: 100mm
Input Voltage: 10-30V DC
Cable Length: 300mm Tinned Copper
OVERALL DIMENSIONS: 150 x 80 x 37mm
Brand: Roadvision
Current Draw: Ind - 0.09A, S/T - 0.09/0.02A 13.8V
ADR Approval: Yes
Wiring: Earth - White, Stop - Red, Tail - Brown, Ind - Gre
Approvals: Ind - E4-6R-0115611, S/T- E4-7R-0215611, Ref - E4-
