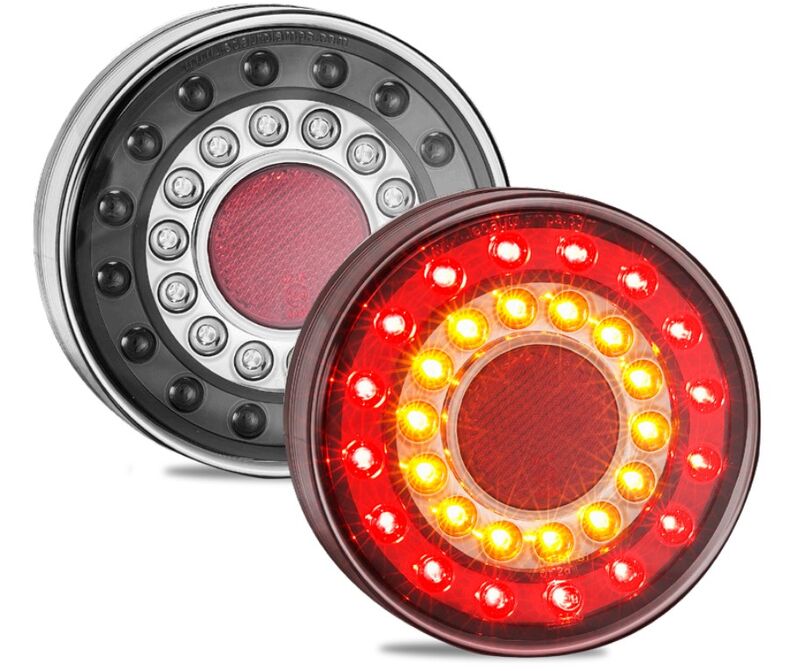

Led Stop/Tail/Indicator Lamp 12/24V Reflector Maxilamp

MaXilamp LED Combination Stop / Tail / Indicator Lamp 12/24 Volt
Red and Amber Illumination
16 x High Intensity Red LED's and 14 x High Intensity Amber LED's
Clear Hardened Acrylic Lens with inbuilt Retro Reflector
Black ABS Plastic Housing with mounting bolts included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.34amps at 12 Volt and 0.17amps at 24 Volt Current Draw for Stop function
0.07amps at 12 Volt and 0.06amps at 24 Volt Current Draw for Tail function
0.37amps at 12 Volt and 0.16amps at 24 Volt Current Draw for Indicator function
ECE 02-R1-S1 Rear Stop Lamp specifications approved- CRN 6445
ECE 01-2a Rear Indicator Lamp specifications approved- CRN 6445
ECE E9-01-2a Reflector specifications approved- CRN 6445
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Specifications:
Type: LED
Shape: Round
Voltage: 12/24V
Mount: Surface
Width (mm): 125
Depth (mm): 40
