Lamp Stop Tail Indicator Led Assembly 72 Leds 12/24V

SKU:80BARM

RRP $136.46
$97.35
SAVE $39.11 (29%)
In Stock

Calculate Shipping

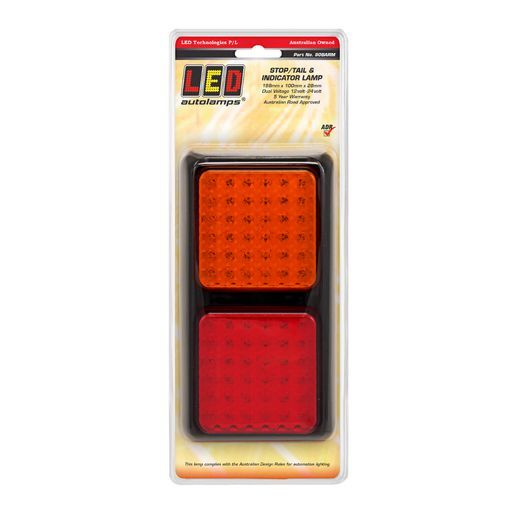

80 Series LED Double Combination Stop / Tail / Indicator Lamp 12/24 Volt
Includes 1 x Stop /Tail Lamp and 1 x Indicator Lamp Module
Red and Amber Illumination
36 x High Intensity White LED's in each Stop / Tail and Indicator Lamp Modules
Red and Amber Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.33amps at 12 Volt and 0.25amps at 24 Volt Current Draw for Stop function
0.06amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
0.31amps at 12 Volt and 0.22amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved- CRN 33059
ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 33098
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 188
Height (mm): 100
Depth (mm): 28

(80BARM)

SKU 80BARM
Barcode # 9.33596E+12
Brand LED Auto Lamps
Shipping Weight 0.3000kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.200m
