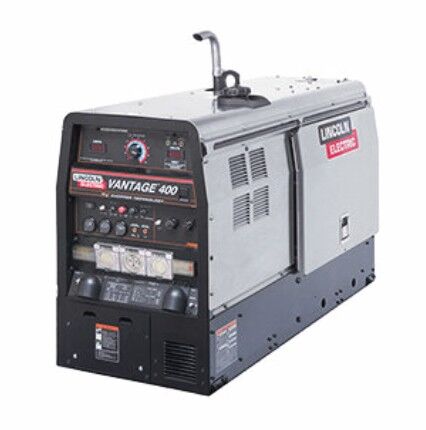

Lincoln - Vantage 400 Diesel (Perkins) - K32038-1
SKU:K32038-1
RRP $98,485.20
$73,765.45
SAVE $24,719.75 (25%)
Not Available In Store
Calculate Shipping
General Specification:
Machines Processes:
Stick (SMAW)
Gouging (CAC-A)
TIG (GTAW)
MIG (GMAW)
Flux-Cored Self-Shielded (FCAW-S)
Flux-Cored Gas-Shielded (FCAW-G)
Mode Icon: CC/CV
Output Range: 14-36V CV,20-250A DC TIG,30-400A DC,40-300A Pipe,90-400A Gouge
Polarity DC
Machine Technologies & Connections
Rated Gouging Carbon Diameter: 5/16 in (8.0 mm)
Wire Feeder Supply Voltage:
115VAC
42VAC
Amphenol Pins (type of connector):
6
14
Work Lead Connector Type: Lug
Engine Driven Welders
Auxiliary Output Frequency: 50 Hz
Engine Horsepower: 28HP @ 1500 RPM
Emissions Rating: US EPA Tier 4i
High Idle Operating Speed @ Rated Output: 1500
Low Idle Operating Speed: 1200
Generator Output: 3-PH: 13.2 kW cont., 1-PH: 7.2 kW cont.
Application:
Typical Application: Construction
Warranty
Warranty: 3 Years
Machines Processes:
Stick (SMAW)
Gouging (CAC-A)
TIG (GTAW)
MIG (GMAW)
Flux-Cored Self-Shielded (FCAW-S)
Flux-Cored Gas-Shielded (FCAW-G)
Mode Icon: CC/CV
Output Range: 14-36V CV,20-250A DC TIG,30-400A DC,40-300A Pipe,90-400A Gouge
Polarity DC
Machine Technologies & Connections
Rated Gouging Carbon Diameter: 5/16 in (8.0 mm)
Wire Feeder Supply Voltage:
115VAC
42VAC
Amphenol Pins (type of connector):
6
14
Work Lead Connector Type: Lug
Engine Driven Welders
Auxiliary Output Frequency: 50 Hz
Engine Horsepower: 28HP @ 1500 RPM
Emissions Rating: US EPA Tier 4i
High Idle Operating Speed @ Rated Output: 1500
Low Idle Operating Speed: 1200
Generator Output: 3-PH: 13.2 kW cont., 1-PH: 7.2 kW cont.
Application:
Typical Application: Construction
Warranty
Warranty: 3 Years
(K32038-1)
| SKU | K32038-1 |
| Barcode # | 9310755025830 |
| Shipping Weight | 50.0000kg |
| Shipping Width | 0.642m |
| Shipping Height | 0.913m |
| Shipping Length | 1.524m |
