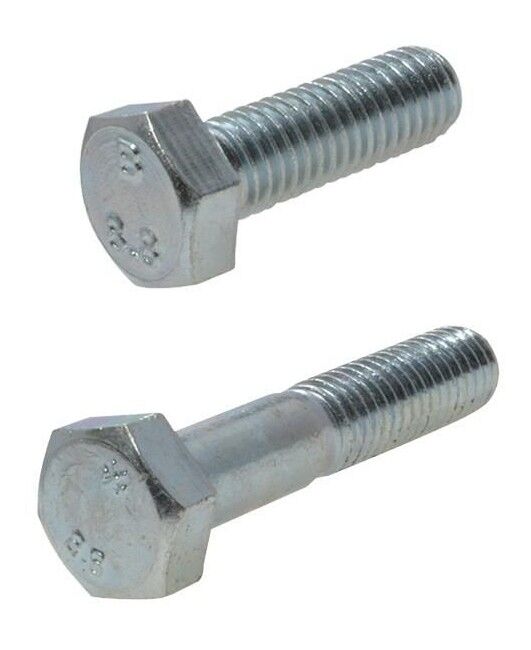

M24 x 3.00p x 60mm Full Thread Metric Coarse Hex Set Screw / Hex Bolt Class 8.8 High Tensile Zinc Plated AS 1110.1 - 51H2460

System of Measurement: Metric
Product: Hex Head Bolt
Head Type: Hex Head
Size: M24 (24mm)
Size & Thread Pitch: M24 x 3.00p Coarse
Thread Pitch: 3.00mm
Thread Direction: Right Hand
Corrosion Protection Level: Moderate
Class Grade: High Tensile Class 8.8
Material: Carbon Steel
Finish: Zinc Plated
Length (l): Select from the dropdown
Thread Length (t): Choose your length to view
Product Diameter (d): 23.67 - 24.00mm
Across Flats (af): 35.38 - 36.00mm
Across Corners (ac): 39.98 - 41.60mm
Head Height (h): 14.78 - 15.22mm
Spanner Size (af): 36mm
Drive Type: Hex
Tightening Torque (Nm): 462.6 (Nm)
Proof Load (kN): 211.8 (kN)
Tensile Strength (kN): 293 (kN)
Shear Strength (kN): 155.5 (kN)
Closest size in imperial: 1"
Standard Made To: AS1110.1
Brand: Hobson Engineering
Alternative Brands: Brighton Best | Bremick Fasteners
