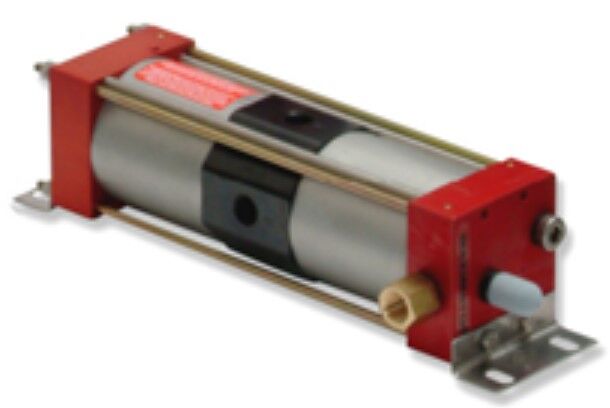

MAXIMATOR Air Amplifiers - MPLV Series

MAXIMATOR MPLV series Air Amplifiers are available as an MPLV2 (1:2 Ratio) or MPLV4 (1:4 Ratio) Amplifiers suitable for the compression of pressurised air or nitrogen. The units can increase normal pressures of 4 bar or 6 bar to the desired final pressures of up to 40 Bar!
Lightweight and compact design
Selected pressure boosting upstream of individual consumers.
Zero energy consumption after final pressure is attained.
No electrical installations are required, i.e. suitable for use in explosion-proof areas
Specifications:
Pressure Ratio: 1:2
P max bar: 20
P max psi: 290
