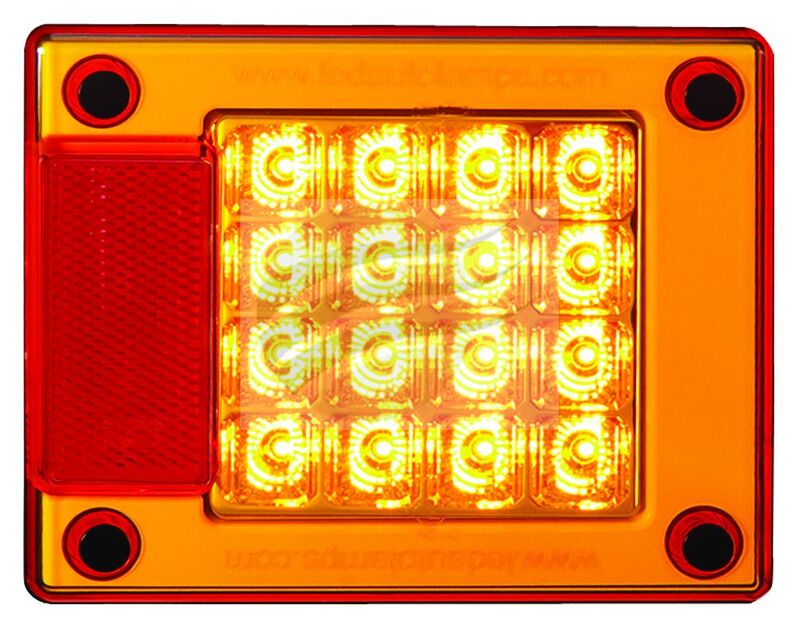

Medium Jumbo Led Indcator Lamp 12/24V Surface Mount 1.2M Lead

Specifications:
Colour: Amber
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 148
Height (mm): 122
Depth (mm): 30
Additional info:
460 Series LED Indicator Lamp 12/24 Volt
Medium sized Jumbo Lamps- can be used as a replacement lamp in the 460 Series Combination Lamp Housing Assembly
Amber Illumination
16 x High Intensity White LED's
Faceted Reflectors with Amber Hardened Acrylic pattern free Lens and Reflex Reflector
Black ABS Plastic Housing with mounting screws and caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 100mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.19amps at 12 Volt and 0.12amps at 24 Volt Current Draw
ECE 2A-E9-01.6205 Indicator Lamp specifications approved
ECE 02-1a Rear Reflector specifications approved- CRN 1472
Refer to ADR 13/00 for mounting instructions
Blister Pack Qty: 1
5 Year Warranty
Spare Parts:
460B3B Black Triple Bracket
