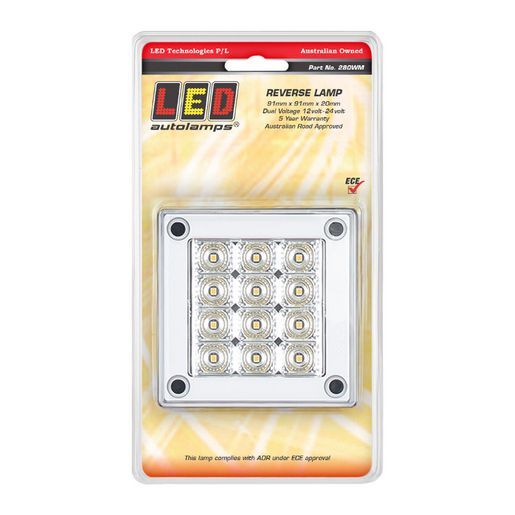

Mini Jumbo Led Reverse Lamp 12/24V Surface Mount 1.2M Lead
SKU:280WM
280 Series LED Reverse Lamp 12/24 Volt
Small sized Mini Jumbo Lamps- can be used as a replacement lamp in the
280 Series Combination Lamp Housing Assembly
White Illumination
12 x High Intensity White LED's
Faceted Reflector with Clear Hardened Acrylic pattern free Lens
Black ABS Plastic Housing with mounting screws caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 100mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.20amps at 12 Volt and 0.13amps at 24 Volt Current Draw
ADR 1/00 Reverse Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Spare Parts:-
280B3B Black Triple Bracket
Specifications:
Colour: White
Type: LED
Shape: Square
Voltage: 12/24V
Mount: Surface
Width (mm): 90
Height (mm): 90
Depth (mm): 28.a
Small sized Mini Jumbo Lamps- can be used as a replacement lamp in the
280 Series Combination Lamp Housing Assembly
White Illumination
12 x High Intensity White LED's
Faceted Reflector with Clear Hardened Acrylic pattern free Lens
Black ABS Plastic Housing with mounting screws caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 100mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.20amps at 12 Volt and 0.13amps at 24 Volt Current Draw
ADR 1/00 Reverse Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Spare Parts:-
280B3B Black Triple Bracket
Specifications:
Colour: White
Type: LED
Shape: Square
Voltage: 12/24V
Mount: Surface
Width (mm): 90
Height (mm): 90
Depth (mm): 28.a
(280WM)
| SKU | 280WM |
| Barcode # | 9310754788965 |
| Brand | Led Autolamps |
| Shipping Weight | 0.3000kg |
| Shipping Width | 100.000m |
| Shipping Height | 50.000m |
| Shipping Length | 150.000m |
