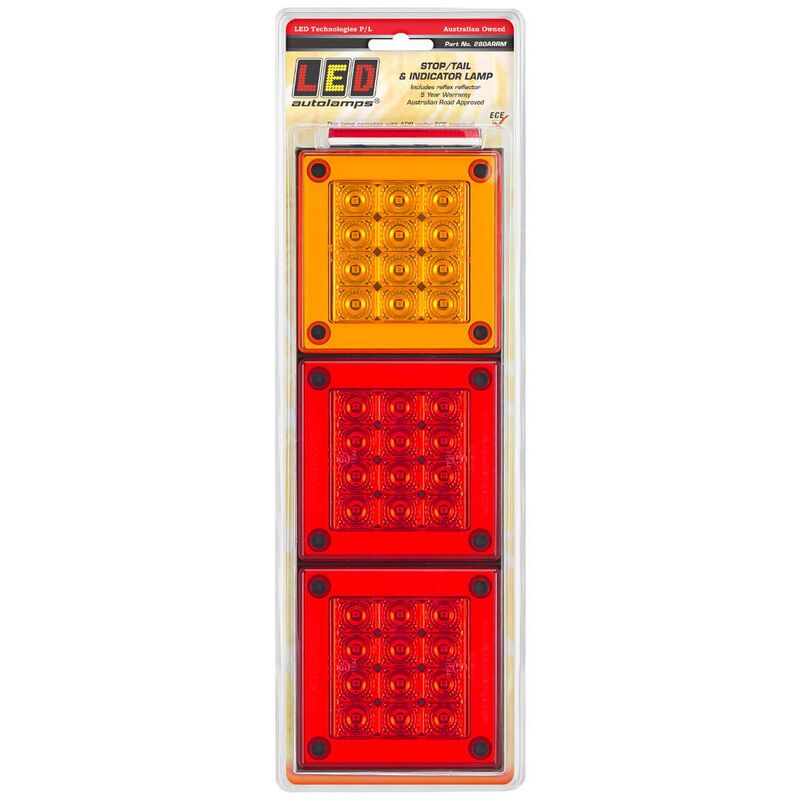

Mini Jumbo Led Stop/Tail/Indicator Lamp 12/24V Surface Mount 1.2M

280 Series LED Triple Combination Stop / Tail / Indicator Lamp 12/24 Volt
Small sized Mini Jumbo Lamps
Includes 2 x Stop /Tail Lamps and 1 x Indicator Lamp Modules
Red and Amber Illumination
12 x High Intensity White LED's in each Stop / Tail Lamps and Indicator Lamp
Faceted Reflector with Red and Amber Hardened Acrylic pattern free Lens
Black ABS Plastic Housing with mounting screws caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 1.2m Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.30amps at 12 Volt and 0.22amps at 24 Volt Current Draw for Stop function
0.04amps at 12 Volt and 0.06amps at 24 Volt Current Draw for Tail function
0.14amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Indicator function
ADR 49/00 Rear Stop Lamp specifications approved
ADR 6/00 2A Rear Indicator Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12/24V
Mount: Surface
Width (mm): 282
Height (mm): 95
Depth (mm): 28
