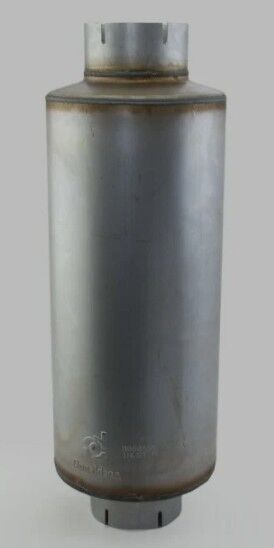

Muffler Donaldson - M090595
SKU:M090595
RRP $708.18
$533.50
SAVE $174.68 (25%)
Not Available In Store
Calculate Shipping
Attributes:
Inlet Diameter: 127.64 mm (5.03 inch)
Outlet Diameter: 127.64 mm (5.03 inch)
Body Diameter Maximum: 227.84 mm (8.97 inch)
Body Length: 508 mm (20.00 inch)
Overall Length: 673 mm (26.50 inch)
Rated Flow LR: 40.5 m3/min (1430 cfm)
Rated Flow MR: 57.3 m3/min (2024 cfm)
Rated Flow HR: 70.1 m3/min (2476 cfm)
Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
Attenuation LR: 10 dBA
Attenuation HR: 15 dBA
Style: Style 1
Inlet Diameter: 127.64 mm (5.03 inch)
Outlet Diameter: 127.64 mm (5.03 inch)
Body Diameter Maximum: 227.84 mm (8.97 inch)
Body Length: 508 mm (20.00 inch)
Overall Length: 673 mm (26.50 inch)
Rated Flow LR: 40.5 m3/min (1430 cfm)
Rated Flow MR: 57.3 m3/min (2024 cfm)
Rated Flow HR: 70.1 m3/min (2476 cfm)
Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
Attenuation LR: 10 dBA
Attenuation HR: 15 dBA
Style: Style 1
(M090595)
| SKU | M090595 |
| Barcode # | 9310755006464 |
| Shipping Weight | 4.0000kg |
| Shipping Width | 0.128m |
| Shipping Height | 0.128m |
| Shipping Length | 0.508m |
